Bolted cylinder test systems
Titan Bolted Cylinder Test Systems system for fluid power linear motion applications. Designed and built to improve production, profitability and quality, bolted cylinders are typically high pressure with a large bore.
Overview
Designed and built to improve production, profitability, and quality, our bolted cylinder test systems handle high-pressure, large-bore cylinders. These test stands are equipped with a comprehensive set of features to ensure reliable, repeatable validation.
Key Features
Tests & Measurements
Technical Specifications
| Stroke Range | 105-3000 mm |
| Bore Range | 120-300 mm |
| Flow Rate | to 300 LPM (80 GPM) |
| Pressure | to 350 BAR (5000 PSI) |

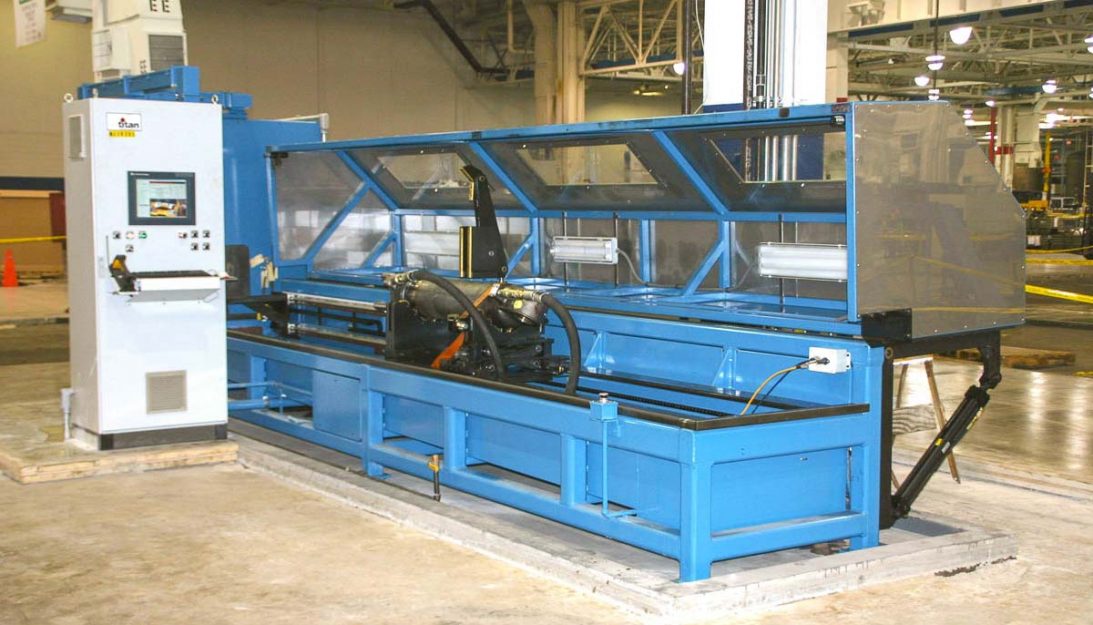

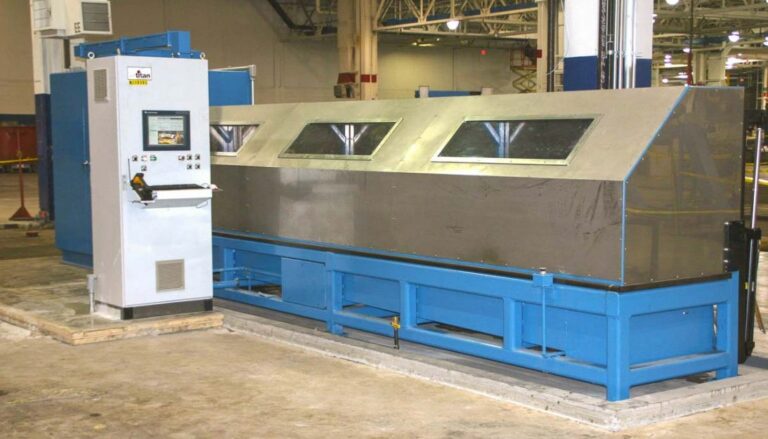

Gallery
Frequently Asked Questions
The Ascential T&M Bolted Cylinder Test Systems are designed for fluid power linear motion applications. Built to improve production, profitability, and quality, these systems are designed specifically for bolted cylinders, which are typically high pressure with a large bore.
Ready to upgrade your infrastructure?
Contact our engineering team for a custom quote or technical consultation regarding Bolted cylinder test systems.
