Brake rotor balancing machines
High-precision brake rotor balancing machines with automatic mill correction, walking beam multi-station options, and intelligent feedback for OEM production lines.
Overview
We supply a range of brake rotor balancing machines that deliver high-precision accuracy and repeatability, exceeding industry process capability demands as standard.
Single- and multi-station variants are available for different batch sizes, changeover requirements, and production demands.
Single-station machines are offered as complete cells or as standalone systems to integrate into customer cells, both typically served by robot.

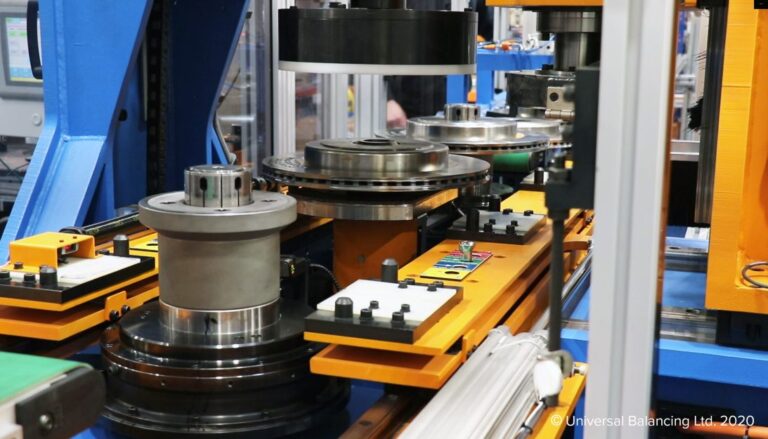

Multi-station machines come complete with in, out, and reject tracks to fit seamlessly into production lines. Movement between stations is through a robust walking beam that has minimal changeover requirements between brake rotor types.
Machines are supplied with integrated automatic mill correction, mill cut-start sensors, and intelligent feedback. This ensures a quality cut on the brake rotor, increased machine throughput, and reduced rejects.
Our brake rotor balancing machines come with our industry-leading UNI-64 Windows measuring system and easy-to-use Winbal balancing software. This includes error proofing of setups and operation, features to improve cycle time, routine maintenance prompts, and comprehensive Industry 4.0 built-in diagnostics.
All our brake rotor balancing machines have a small footprint as standard, are installed and commissioned in as little as two days, and are built largely with industry-standard components.
Key Features
Technical Specifications
| Parameter | Value |
|---|---|
| Machine Type | Vertical |
| Measurement Planes | 1 plane |
| Measuring System | UNI-64 Windows touchscreen |
| Software | Winbal |
| Correction | Automatic mill with cut start sensors |
| Multi-station | Walking beam with in/out/reject tracks |
| Loading | Robot, track, manual |
| Installation | As little as 2 days |
Applications
Gallery
Frequently Asked Questions
The Brake Rotor Balancing Machines from Ascential Test & Measurement deliver high precision accuracy and repeatability, exceeding industry process capability demands as standard for brake rotor, disc, and drum balancing in OEM production environments.
Ready to upgrade your infrastructure?
Contact our engineering team for a custom quote or technical consultation regarding Brake rotor balancing machines.
