CMT-VSR BIG BASIC
Combined high-speed core and rotor balancing center integrating CMT-VSR Big and CMT-TR Polimer for comprehensive turbocharger reconditioning.
Overview

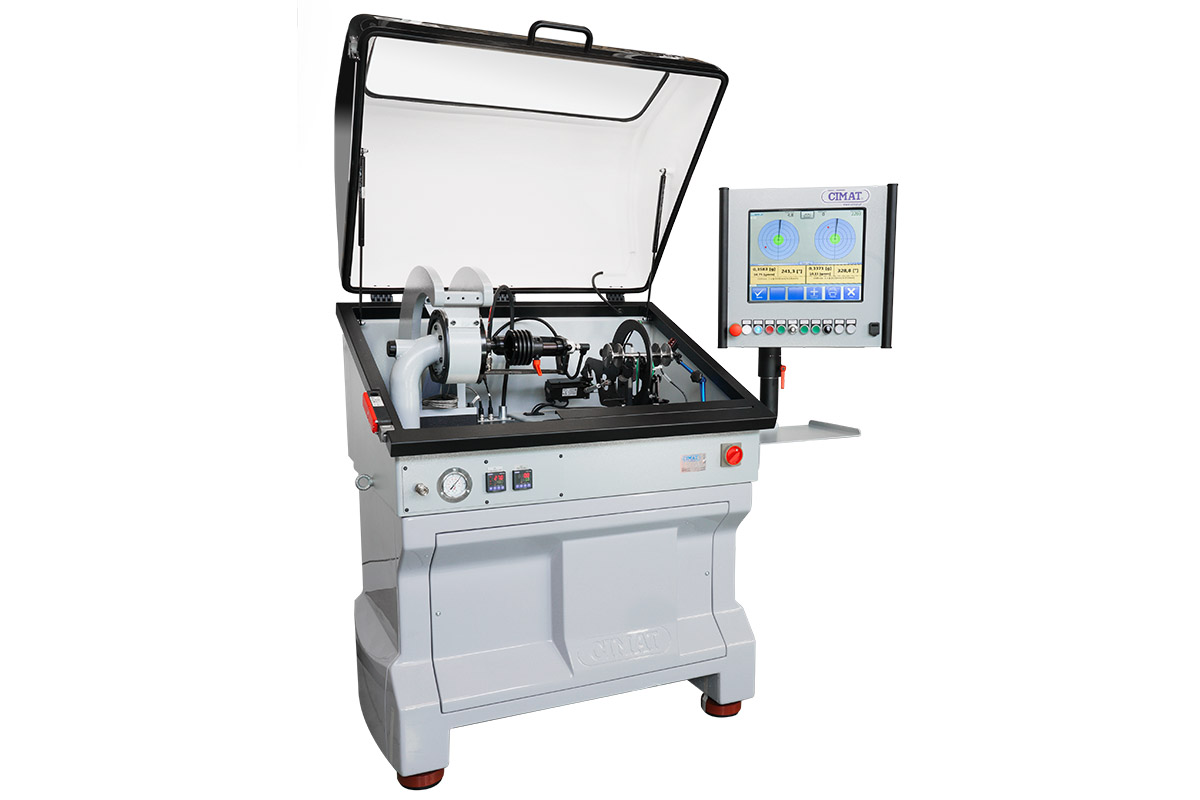

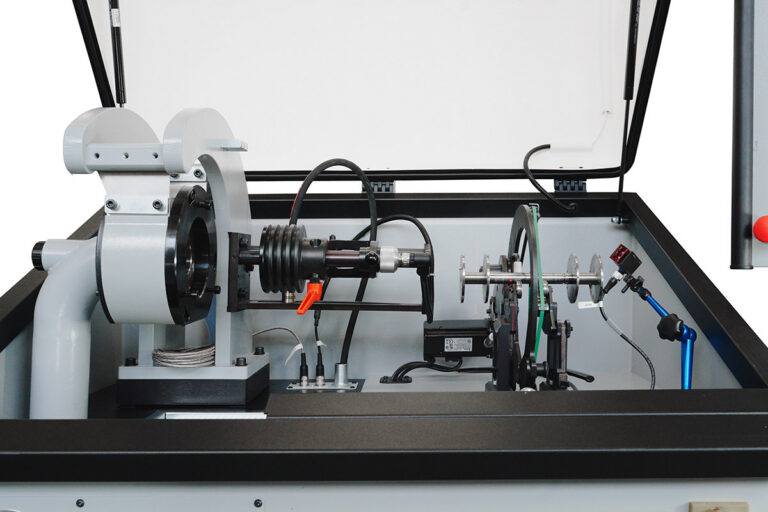

The CMT-VSR BIG BASIC is a combined high-speed core and belt-driven rotor balancing machine. By integrating two machines in one housing, it provides a complete turbocharger balancing center.
The first station is the CMT-VSR Big, dedicated to high-speed core balancing of passenger car and light/medium commercial vehicle turbochargers. It ensures high production efficiency of approximately 150 to 200 cores per 450-minute shift.

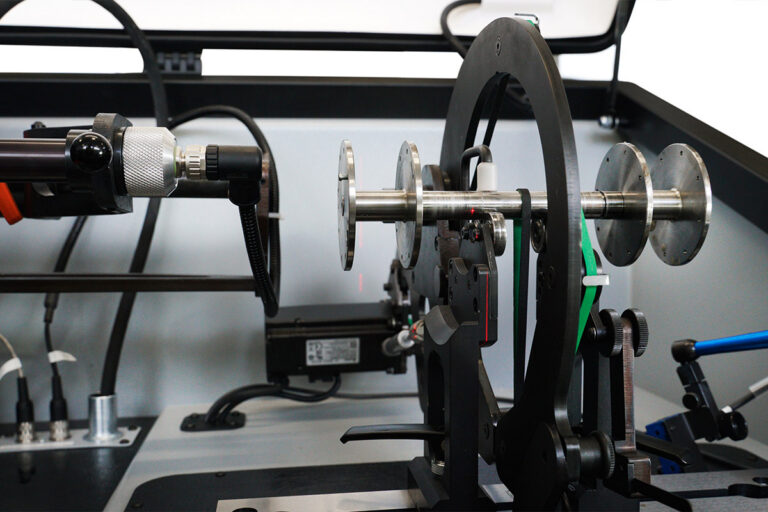

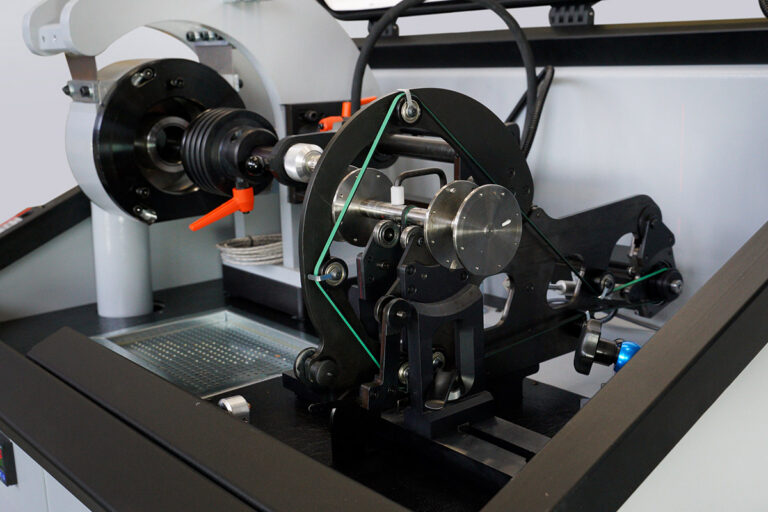

The second station is the CMT-TR Polimer, dedicated to turbocharger rotor balancing, including compressor wheels and turbine wheels.
Key Features
Technical Specifications
HIGH SPEED CORE BALANCING MACHINE
| Maximum Turbine Wheel Diameter | 134 mm (Inducer) / 114 mm (Exducer) |
| Maximum Compressor Wheel Diameter | 300 mm |
| Maximum Rotational Speed Value | 300,000 rpm |
| Speed / Cycle Control | Automatic |
| Unit Of Measurement | G, m/s² |
| Correction Point | Automatically calculated |
| Reverse Rotation Core Balancing | Yes |
ROTOR BALANCING MACHINE
| Maximum Rotor Mass | 20 g – 5 kg |
| Maximum Rotor Diameter | 200 mm |
| Maximum Distance Between Roller Bearings | 200 mm |
| Rotor Journal Diameter Range | 5 – 25 mm |
| Unit Of Measurement | [mg], [gmm] |
| Number Of Correction Planes | 2 |
| Minimum Achievable Residual Unbalance | 0.05 gmm |
| Unbalance Reduction Ratio | ≥ 95% |
| Maximum Rotational Speed | Up to 16,000 rpm |
| Speed Control | Continuously adjustable |
| Motor Type | Servo drive |
| Specific Rotor Calibration | Standard calibration process that requires to make calibration runs with test weights to create a rotor setup file. |
| "ABC" Rotor Calibration | Simple calibration process that does not require any calibration runs to create a rotor setup file. |
GENERAL DATA
| Oil Filtration | Multistage |
| Safety Guarding | C type with a guard locking |
| Diameter Of Air Supply Pipe | 1" |
| Compressed Air Pressure | 8 bar |
| Air Tank Capacity | For passenger car turbochargers: 500 l<br>For large-frame turbochargers: ≥ 500 l |
| Mass Of The Machine | 450 kg |
| Power Supply | 230 V, 50/60 Hz |
| Dimensions Of The Machine | 1700 mm x 1000 mm x 1750 (2000) mm |
Gallery
Frequently Asked Questions
The CMT-VSR BIG BASIC is a combined high-speed core and rotor balancing center that integrates high-speed core balancing with rotor balancing capabilities in one housing. It serves as a complete center for comprehensive turbocharger reconditioning.
