Balancers for crankshafts
Specialized crankshaft balancing machines with intelligent unbalance distribution software and integrated on-site drilling correction.

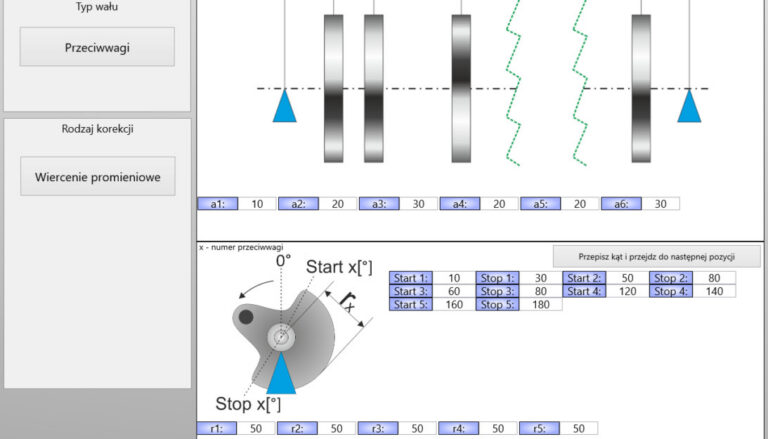

High accuracy and efficiency are guaranteed thanks to special software that distributes unbalance to different counterweights for drilling.
On-site drilling station that can travel in different directions and provides fast and easy mass correction.
Custom balancers are available upon request.
Balancing reports can be saved as a PDF, CSV or XLS and can be sent to a built-in printer or to an ERP system—summary reports can also be created on request
Safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant.
Permanent calibration and rotor specific calibration as standard
Latest measuring and control unit ROTORTEST based on microprocessor technology
High accuracy and efficiency are guaranteed thanks to special software that distributes unbalance to different counterweights for drilling.
On-site drilling station that can travel in different directions and provides fast and easy mass correction.
Custom balancers are available upon request.
Balancing reports can be saved as a PDF, CSV or XLS and can be sent to a built-in printer or to an ERP system—summary reports can also be created on request
Safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant.
Permanent calibration and rotor specific calibration as standard
Latest measuring and control unit ROTORTEST based on microprocessor technology
Selected Capabilities
High accuracy and efficiency are guaranteed thanks to special software that distributes unbalance to different counterweights for drilling.
On-site drilling station that can travel in different directions and provides fast and easy mass correction.
Custom balancers are available upon request.
Key Features
High accuracy and efficiency are guaranteed thanks to special software that distributes unbalance to different counterweights for drilling.
On-site drilling station that can travel in different directions and provides fast and easy mass correction.
Custom balancers are available upon request.
Balancing reports can be saved as a PDF, CSV or XLS and can be sent to a built-in printer or to an ERP system—summary reports can also be created on request
Safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant.
Permanent calibration and rotor specific calibration as standard
Latest measuring and control unit ROTORTEST based on microprocessor technology
Technical Specifications
Technical Specifications
| Weight Capacity Of A Rotor | 7 – 700 [kg] |
| Hard Bearing (permanent) And Rotor Specific Calibration | Included |
| Max. Diameter Of A Rotor Above Bed | 1700 [mm] |
| Max. Diameter Of The Rotor Above Belt Drive | 1250 [mm] |
| Special On Site High Performance Driller | Included |
| Drive Motor | AC motor with inverter |
| Safety Guarding And CE Label | Included |
| Weight Of The Machine | around 1500 [kg] |
| Unbalance Calculation Software | Included |

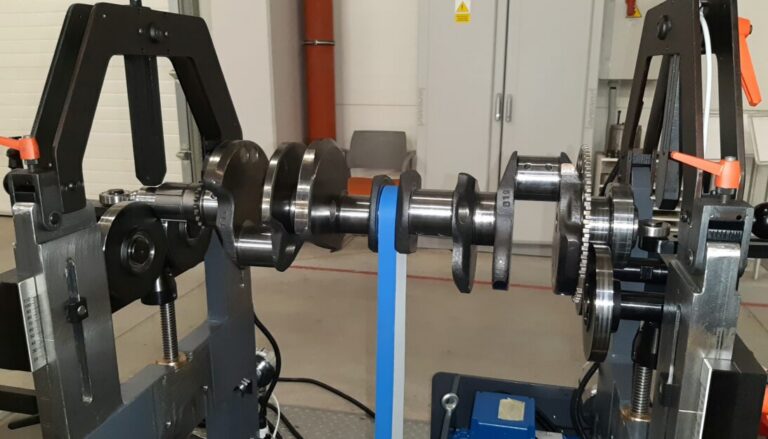

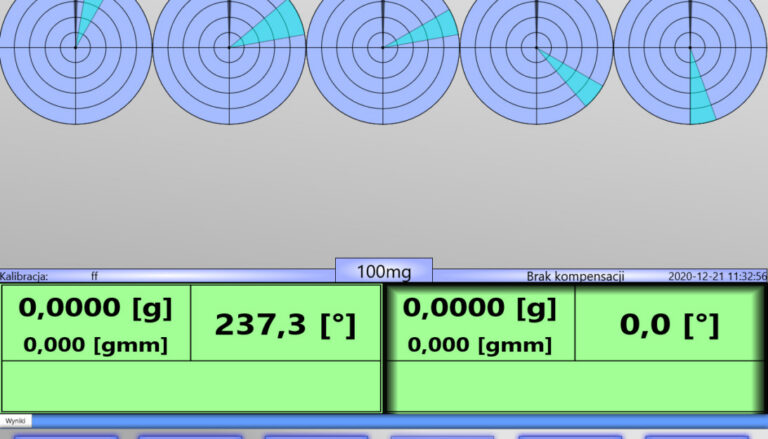

Gallery
Frequently Asked Questions
The Balancers for Crankshafts are specialized crankshaft balancing machines with intelligent unbalance distribution software and integrated on-site drilling correction. They are designed for balancing crankshafts of all kinds.
