Industrial balancing machine Vertical manual - fans

Fan balancers

Q: What are the key features of the Fan Balancers?

Key features include low space requirement due to compact design, a high-precision measuring system with a wide speed range, easy-to-use and intuitive operation, orientation of horizontal and vertical measuring axes, simple loading and unloading, operator guidance with direct display of unbalance correction on the monitor, and high balancing precision.

Q: What models of Fan Balancers are available?

Six models are available: CMT-30 V, CMT-50 V, CMT-100 V, CMT-200 V, CMT-500 V, and CMT-1000 V, covering capacities from 30 kg to 1,000 kg. Optional manual and semi-automatic correction is available.

Custom fan balancing machines in automatic, semi-automatic, and manual configurations from 30 kg to 1,000 kg capacity.

Low space requirement due to compact design, High-precision measuring system and a wide speed range, Easy to use, Orientation of the horizontal and vertical measuring axis, Intuitive operation of the machine, Simple loading and unloading, Operator guidance with direct display of the unbalance correction on the monitor, High balancing precision. Low space requirement due to compact design, High-precision measuring system and a wide speed range, Easy to use, Orientation of the horizontal and vertical measuring axis, Intuitive operation of the machine, Simple loading and unloading, Operator guidance with direct display of the unbalance correction on the monitor, High balancing precision.

Selected Capabilities

Low space requirement due to compact design,

High-precision measuring system and a wide speed range,

Easy to use,

Request a quote

Overview Features Specs Gallery Resources FAQ Catalog

Overview

CIMAT offers a wide range of high-quality fan balancing machines designed to balance fans and blowers, with optional manual and semi-automatic correction.

CIMAT manufactures custom fan balancing machines to suit virtually any type of company or application — fully automatic, semi-automatic, and manual. Machines may be configured for radial or axial wheels.

Key Features

Low space requirement due to compact design,

High-precision measuring system and a wide speed range,

Easy to use,

Orientation of the horizontal and vertical measuring axis,

Intuitive operation of the machine,

Simple loading and unloading,

Operator guidance with direct display of the unbalance correction on the monitor,

High balancing precision.

Technical Specifications

MODEL	CMT-30 V	CMT-50 V	CMT-100 V	CMT-200 V	CMT-500 V	CMT-1000 V
Maximum weight of a component	30 kg	50 kg	100 kg	200 kg	500 kg	1000 kg
Minimum weight of a component	0.5 kg	0.5 kg	0.5 kg	0.5 kg	0.5 kg	0.5 kg
Maximum diameter of the component	450/650 mm	450/650 mm	450/850 mm	650/850/1500 mm	650/850/1500 mm	650/850/1500 mm
Maximum rotor length	350 mm	350 mm	450 mm	450 mm	500 mm	500 mm
Number of measuring planes	1 or 2	1 or 2	1 or 2	1 or 2	1 or 2	1 or 2
Required air pressure	0,6 MPa	0,6 MPa	0,6 MPa	0,6 MPa	0,6 MPa	0,6 MPa
On-station correction	Drilling	Drilling	Drilling	Drilling	Drilling	Drilling

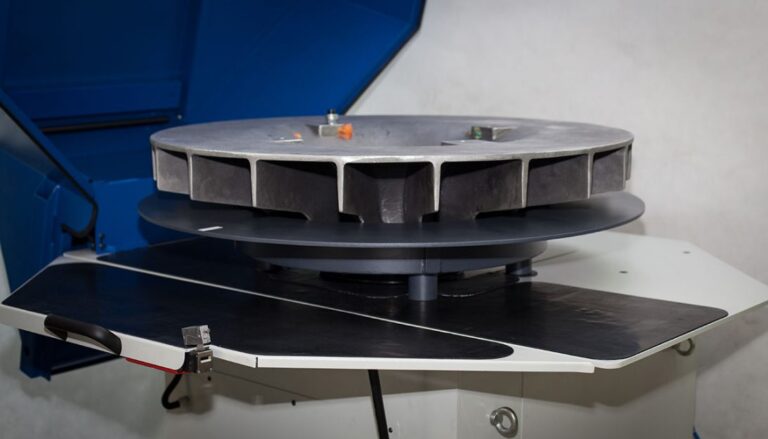

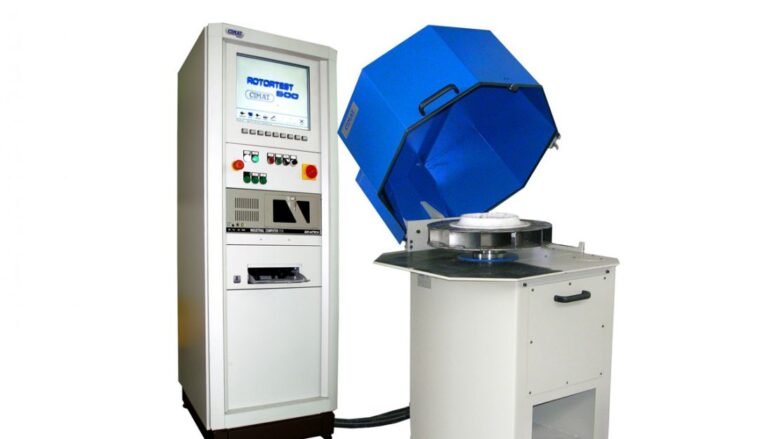

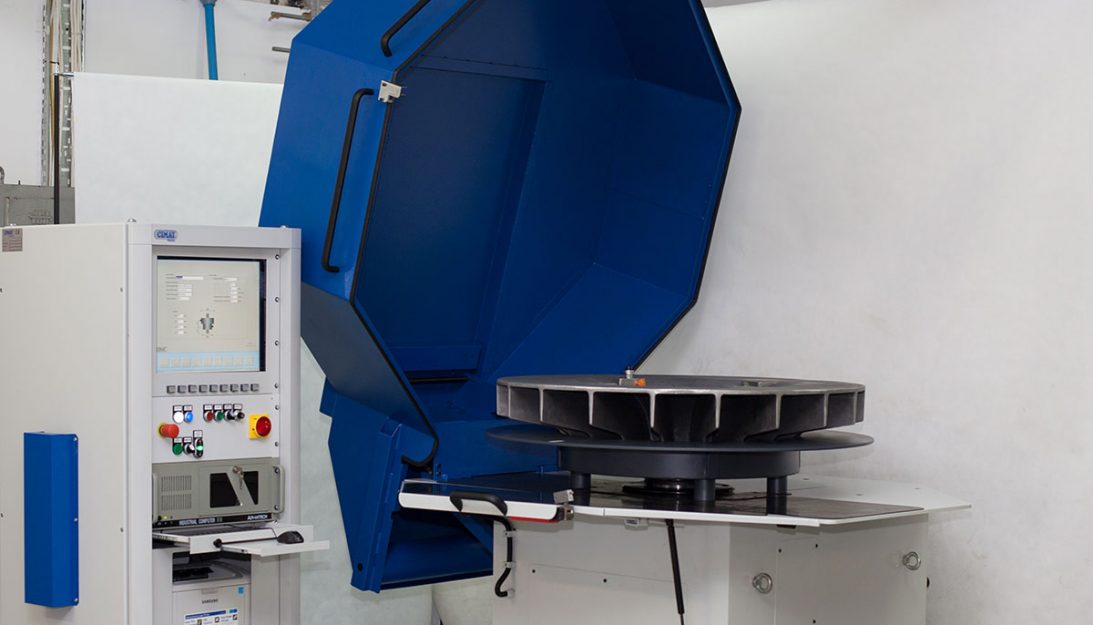

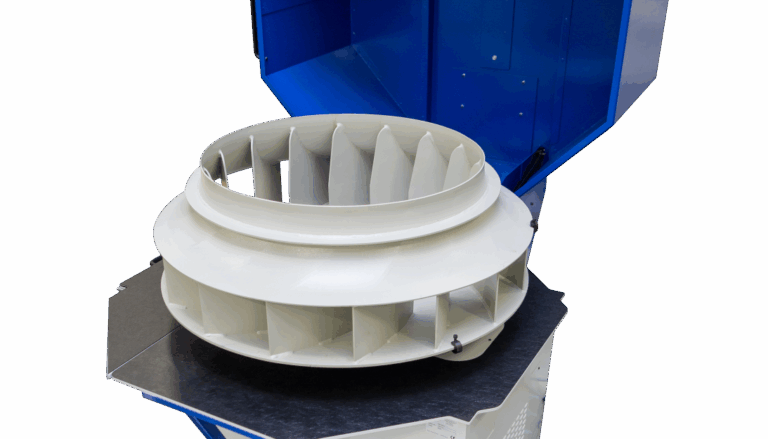

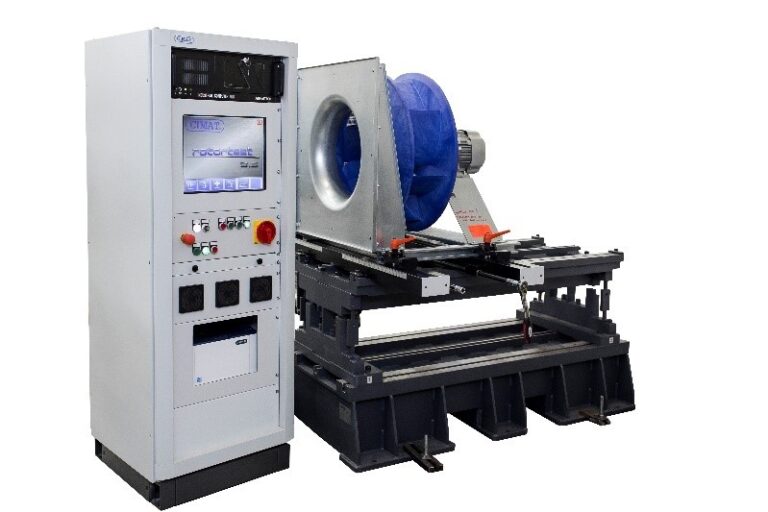

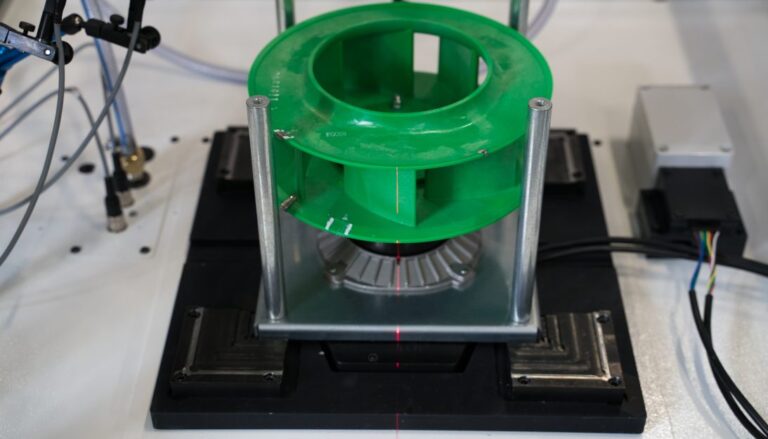

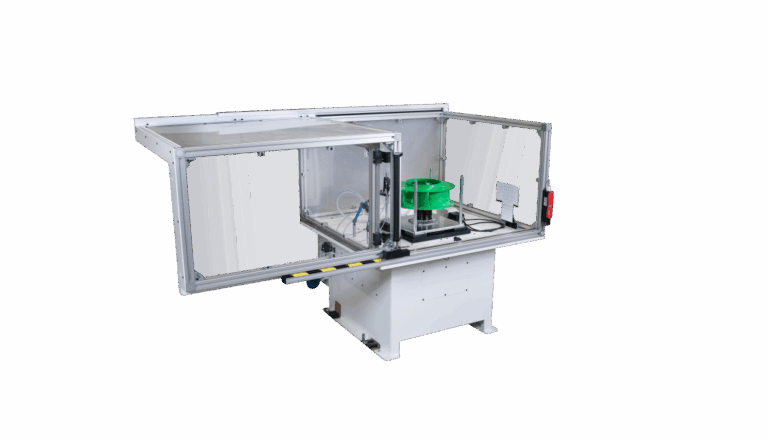

Gallery

Frequently Asked Questions

What are the Fan Balancers?

The Fan Balancers are custom fan balancing machines designed to balance fans and blowers. They are available in fully automatic, semi-automatic, and manual configurations, and can be designed for radial or axial wheels with capacities from 30 kg to 1,000 kg.

What are the key features of the Fan Balancers?

What models of Fan Balancers are available?
