Herec k 75 s
Features two stages: low pressure and high pressure. The low pressure stage is managed by a vacuum pump
Overview

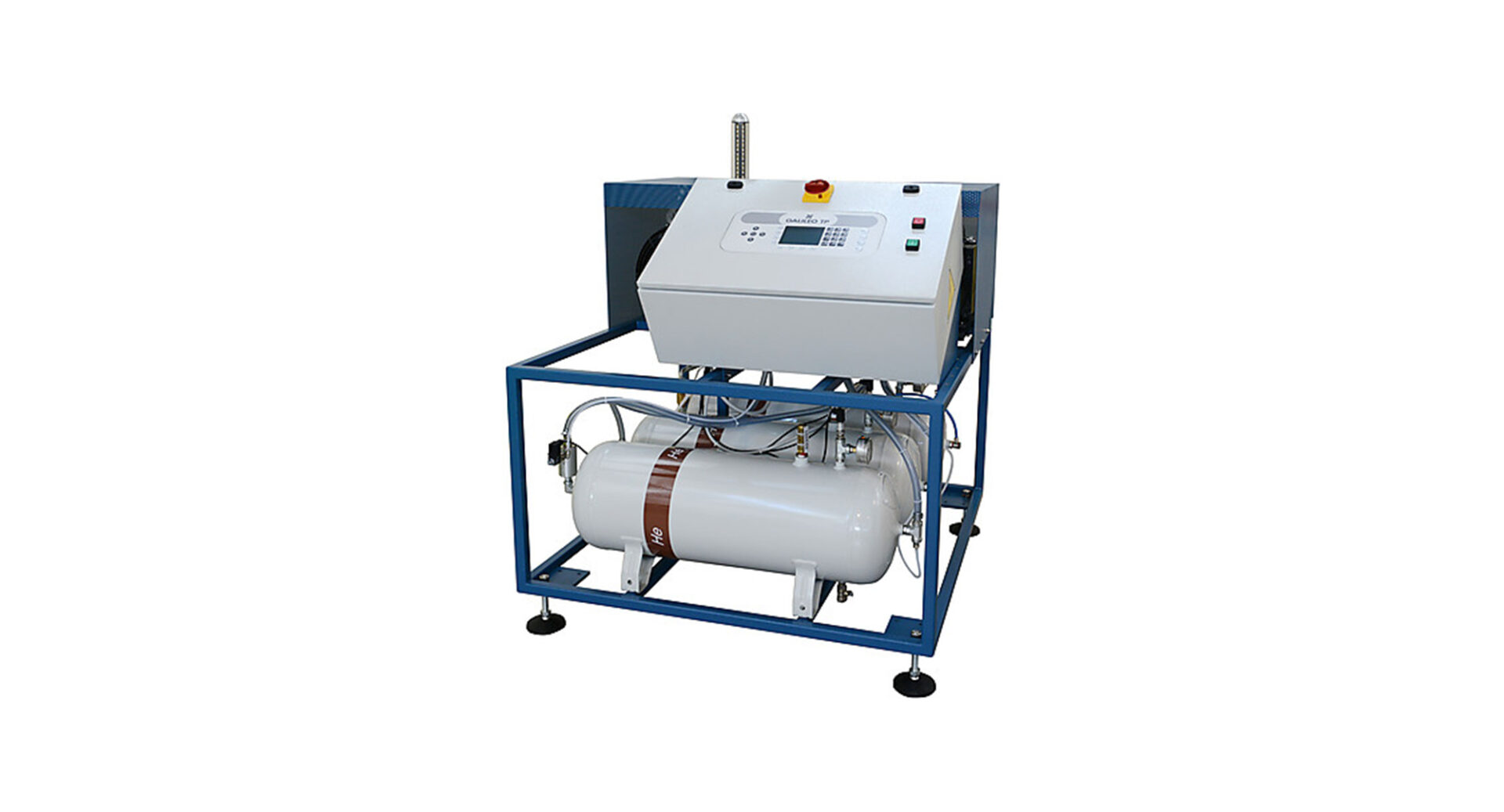

The Herec K 75 S system features two stages: low pressure and high pressure. The low-pressure stage is managed by a vacuum pump that guarantees maximum recovery efficiency, even for very low helium test pressures. The system has been designed for medium to small production lines with helium test pressure lower than 13 bar. Analysis controls monitor helium concentration in the tanks, allowing the unit to preserve the purity of delivered helium at the desired value. Alarm sensors are installed to flag possible anomalies. Herec K 75 S communicates with Galileo TP leak detection machines to provide complete integration between the systems.
Key Features
Technical Specifications
Herec K 75 S
| Model | Nominal Flow Rate | Working Pressure | Helium Storage Capacity |
|---|---|---|---|
| Herec K 75 S | 75 Nl/min | Up to 14 bar | 300 Nl (at 13 bar outlet pressure) |
Frequently Asked Questions
The Ascential T&M Herec K 75 S is a helium recovery system featuring two stages: low pressure and high pressure. The low pressure stage is managed by a vacuum pump, which guarantees maximum efficiency of recovery even for very low helium test pressure.
Ready to upgrade your infrastructure?
Contact our engineering team for a custom quote or technical consultation regarding Herec k 75 s.
