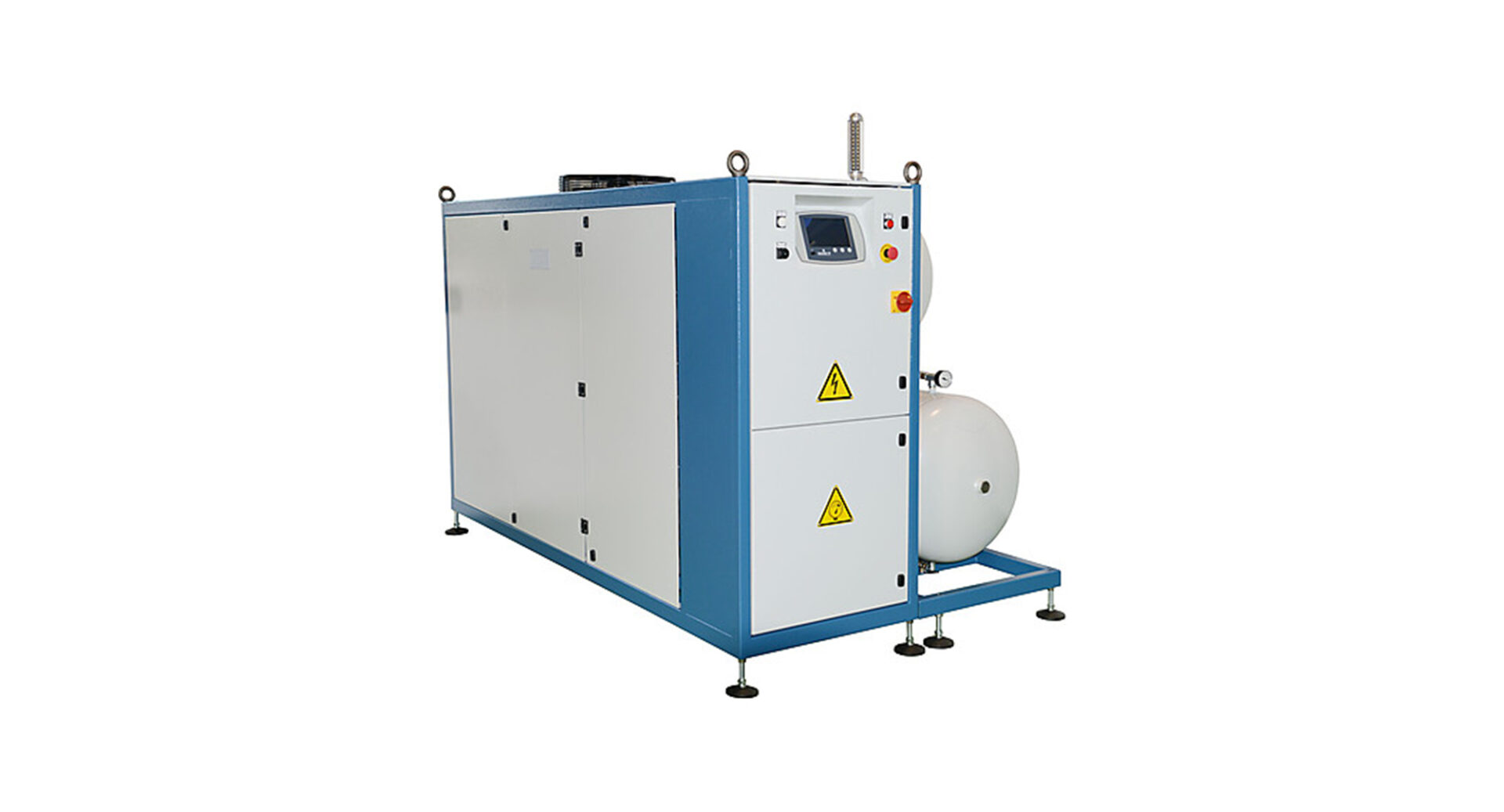

Herec NK HP 100
Engineered for the recovery, storage and reuse of helium at high pressure (up to 110 bar)
Overview
Herec NK HP has been engineered for the recovery, storage and reuse of helium at high pressure (up to 110 bar) and the reuse of the helium used for leak detection. The system process automatically restores helium losses by charging new helium from the refilling bottle (to be supplied by the user). It can maintain a stable working pressure condition on the high-pressure storage as well as a stable concentration. The system features two stages: low pressure (under vacuum) and high pressure. Particularly indicated for higher production lines that can work also with high helium pressure. It easily handles multiple helium testing stations thanks to the high storage capacity. The system features analysis controls of helium concentration in the tanks, which allows the unit to preserve the purity of the delivered helium at the desired value. Auto-diagnostic function and alarms sensors are installed in case of possible anomalies. Herec NK HP communicates with Galileo TP’s leak detection machines to provide a complete integration between the systems.
Key Features
Technical Specifications
Herec NK HP
| Model | Nominal Flow Rate | Working Pressure | Helium Storage Capacity |
|---|---|---|---|
| Herec NK HP 100 | 100 Nl/min | Up to 110 bar | 2500 Nl (at 8 bar outlet pressure) |
| Herec NK HP 200 | 200 Nl/min | Up to 110 bar | 2500 Nl (at 8 bar outlet pressure) |
Frequently Asked Questions
The Ascential T&M Herec NK HP is a high pressure helium recovery system engineered for the recovery, storage, and reuse of helium at pressures up to 110 bar. It automatically restores helium losses by charging new helium from a refilling bottle and maintains both stable working pressure and concentration.
Ready to upgrade your infrastructure?
Contact our engineering team for a custom quote or technical consultation regarding Herec NK HP 100.
