Recdata TJ v
PC software that manages the vacuum stations of cooling units. Stores test data in SQL database, integrates with GEDA system.
Overview

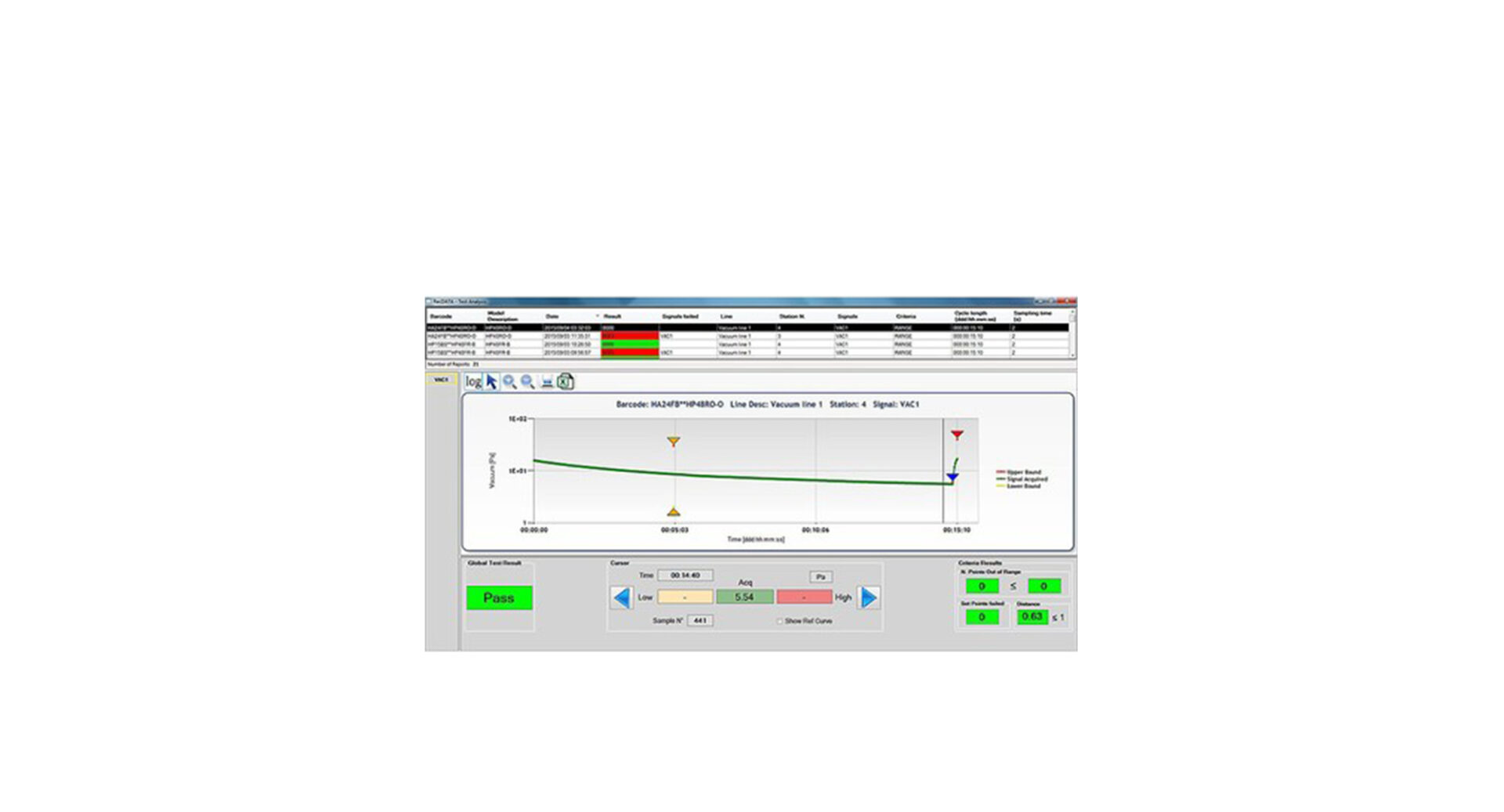

RecData TJ V is PC software that manages the vacuum stations of cooling units. The test is carried out by collecting the vacuum level from VG502 vacuum gauges on either fixed stations or mobile carousels.
The acquired curves are compared against a group of reference values (minimum and maximum). The test passes if the acquired curve values fall between the previously set maximum and minimum thresholds.
It is possible to set different working cycles for different models and to manage the vacuum rise test. The test may last from a minimum of 1 second up to a maximum of 9 hours. The minimum sampling time is 1 second. All performed tests are stored in a SQL database.
RecData TJ V is completely integrated with the GEDA system for data acquisition and statistics, as well as external supervision of the line.
Key Features
Technical Specifications
Database
SQL
Frequently Asked Questions
The Ascential T&M RecData TJ V is PC software that manages the vacuum stations of cooling units. It collects vacuum levels from VG502 vacuum gauges for both fixed stations and mobile carousels, compares acquired curves with reference values, and stores all test data in a SQL database.
