Threaded cylinder test systems
Titan Threaded Cylinder Test Systems system for fluid power linear motion applications. Designed and built to improve production, profitability and quality. Almost completely automated, our test systems accept a wide range of products/models and require minimal operator interaction. An optional vision system allows testing without special fixturing or mounting of cylinders.
Overview
Designed and built to improve production, profitability, and quality, our test systems are almost completely automated, accepting a wide range of products and models with minimal operator interaction. An optional vision system allows testing without special fixturing or mounting of cylinders.
Key Features
Tests & Measurements
Technical Specifications
| Stroke Range | 304-3510 mm |
| Bore Range | 60-227 mm |
| Proportional Pressure | 10-350 BAR |
| Flow Control | 1-41 LPM |
| Vision Based Pin To Pin Measurements | ±0.1 mm accuracy |

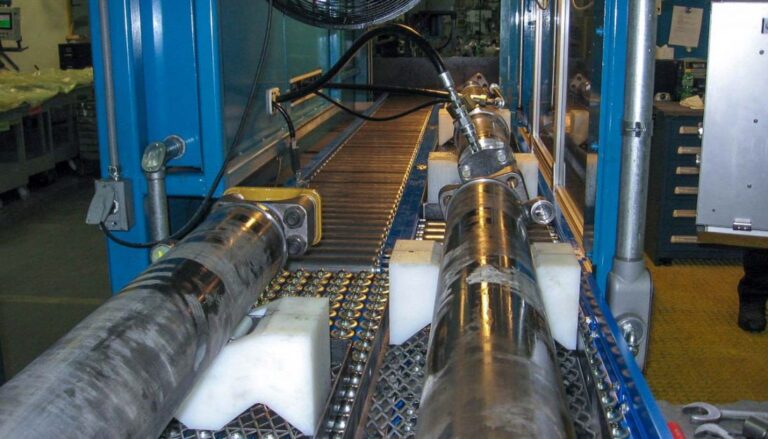

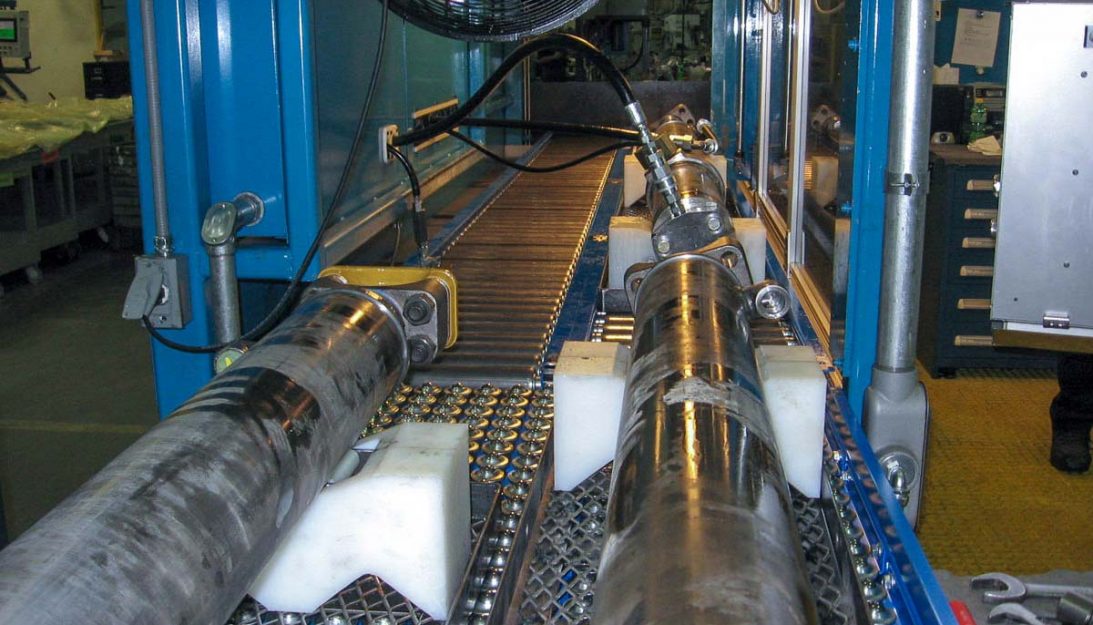

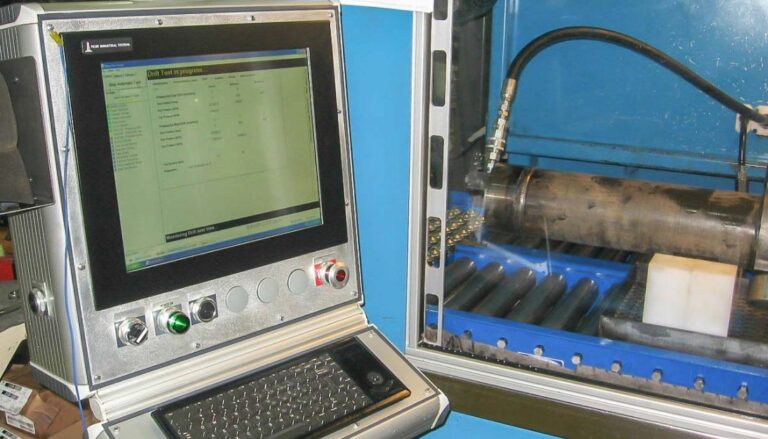

Gallery
Frequently Asked Questions
The Ascential T&M Threaded Cylinder Test Systems are designed for fluid power linear motion applications. Built to improve production, profitability, and quality, these systems are almost completely automated, accept a wide range of products and models, and require minimal operator interaction.
Ready to upgrade your infrastructure?
Contact our engineering team for a custom quote or technical consultation regarding Threaded cylinder test systems.
