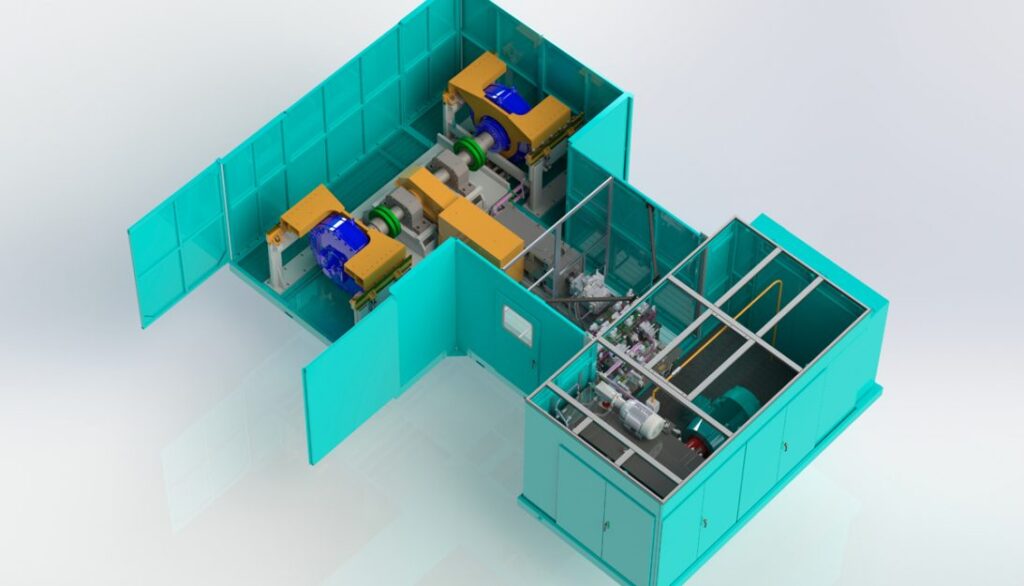

Radial Cam Piston Motor Test
Titan Radial Cam Piston Motor Test system for fluid power rotary motion applications. Systems are designed to accommodate the high torque capabilities of these motors. To test the motor under full load, the test system is designed to utilize two identical motors opposed to one another. The rotation imposed by rotating the interconnecting shaft between the motors.
Piston Pump/Motor Test
Titan Piston Pump/Motor Test system for fluid power rotary motion applications. Systems are designed to accommodate the high pressures and a wide variety of control options typical on variable displacement products. Each system is tailored to meet the customer’s unique families of pumps and/or motors. Special provisions allow for safe and efficient control adjustments if required.

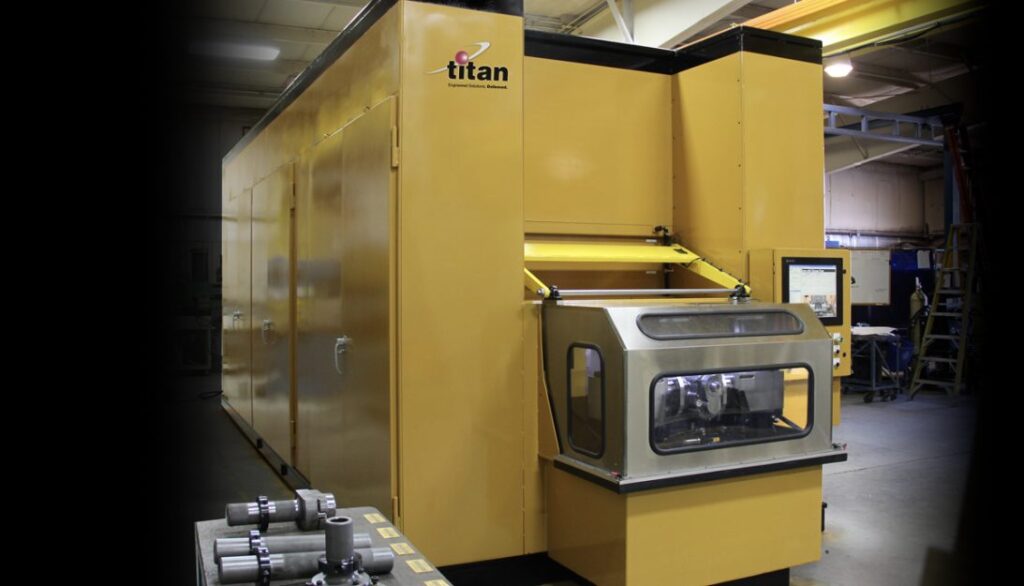

Gear Pump and Gear Motor Test
Titan Gear Pump and Gear Motor Test system for fluid power rotary motion applications. System hardware and software are designed to address the unique requirements of gear product cut-in. High capacity filtration is required to manage the debris released during cut-in. In addition, the primary mover must be upsized to provide sufficient torque during cut-in. Our software is designed to facilitate a customer’s prescribed pressure and speed cut-in profile. Automated particle counting can be integrated to actively extend flushing to meet customer’s cleanliness requirements.

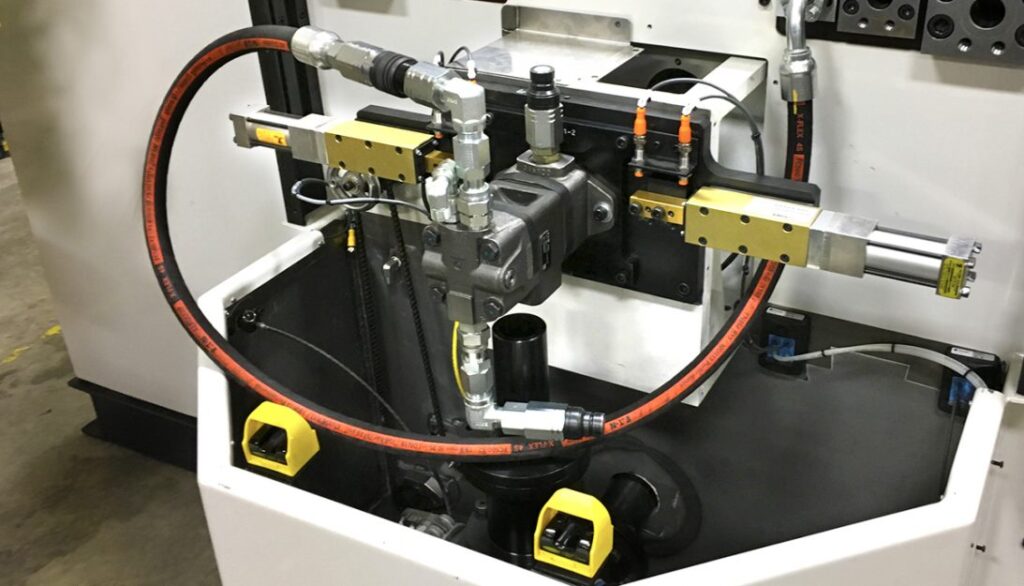

Vane Pump/Motor Test
Titan Vane Pump/Motor Test system for fluid power rotary motion applications. Systems are designed to accommodate pumps and motors on a common driveline. Motors can be tested as motors or as a pump. Custom circuits are used for testing a wide variety of output flow controls. Each system is tailored to meet the customer’s unique families of pumps and/or motors.

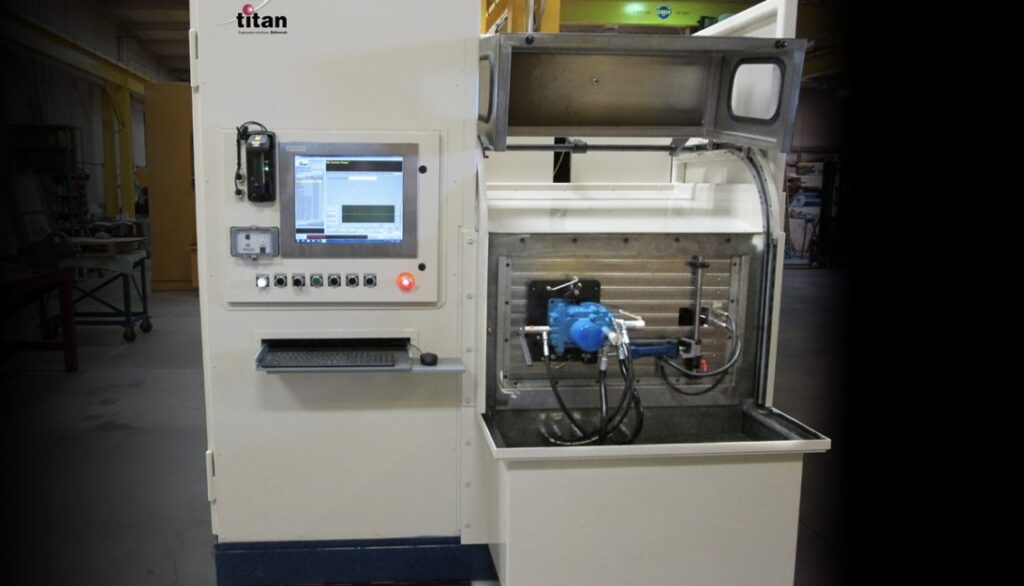

Hydrostatic Transmission (HST) Test
Titan Hydrostatic Transmission (HST) Test system for fluid power rotary motion applications. A basic HST test system consists of a pump and a motor. Test systems require at least two drivelines, one for driving the pump and the second for loading the motor. Test system sizes range from those designed for small HSTs used in turf care to large HSTs used in large agricultural vehicles. Unlike a pump or motor test system, workport flow is typically integral to the HST and unavailable for measurement.

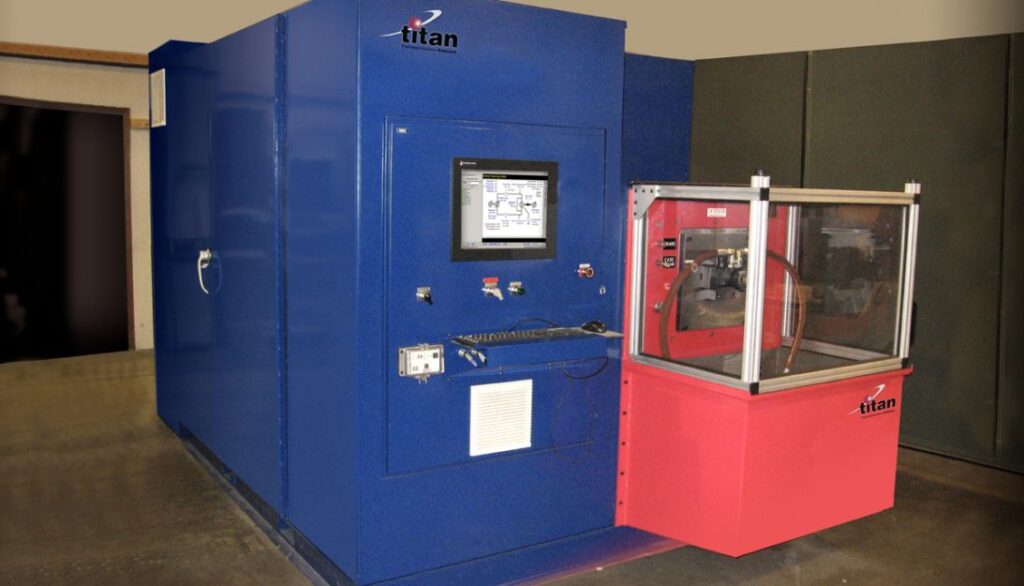

Gerotor Pump/Motor Test
Titan Gerotor Pump/Motor Test system for fluid power rotary motion applications. Systems are designed to accommodate pumps and motors on a common driveline. Motors can be tested as motors or as a pump. Custom circuits are used for testing a wide variety of output flow controls. Each system is tailored to meet the customer’s unique families of pumps and/or motors.

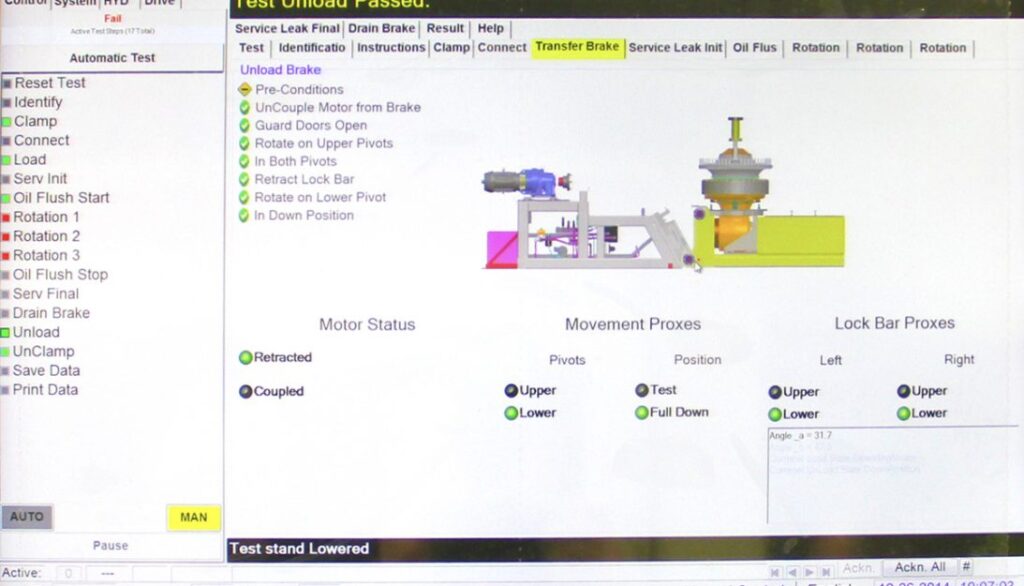

Wet Brakes Test
Titan Wet Brakes Test system for fluid power rotary motion applications. Designed and built to improve performance, profitability, and quality, our fluid power test stands are second to none. On the leading edge of validation testing, systems are equipped with an array of sensors powered by sophisticated data acquisition software that can check leakage, flow, pressures, and gal/min measurements. Almost completely automated, test systems accept a wide range of products/models and require minimal operator interaction.

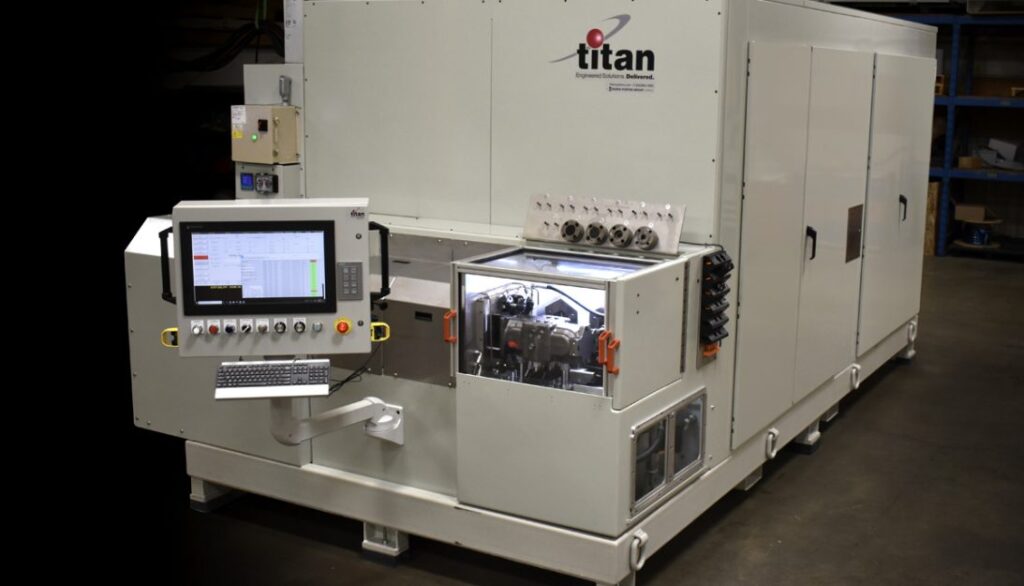

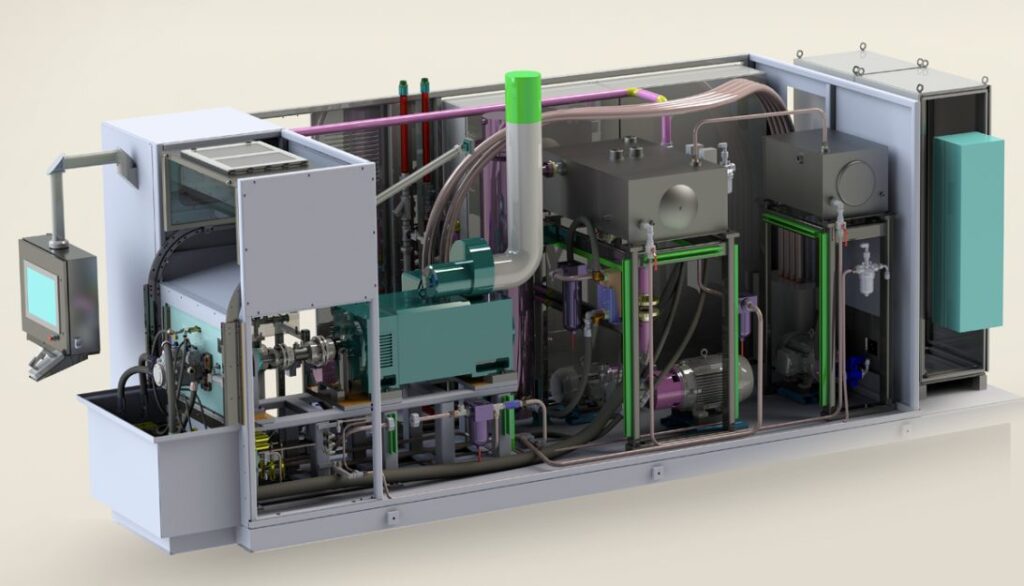

Axial Piston Pump Test
Titan Axial Piston Pump Test system for fluid power rotary motion applications. System hardware and software are designed to address the unique requirements of Axial Piston pumps. Automated particle counting can be integrated to actively extend flushing to meet customer’s cleanliness requirements.

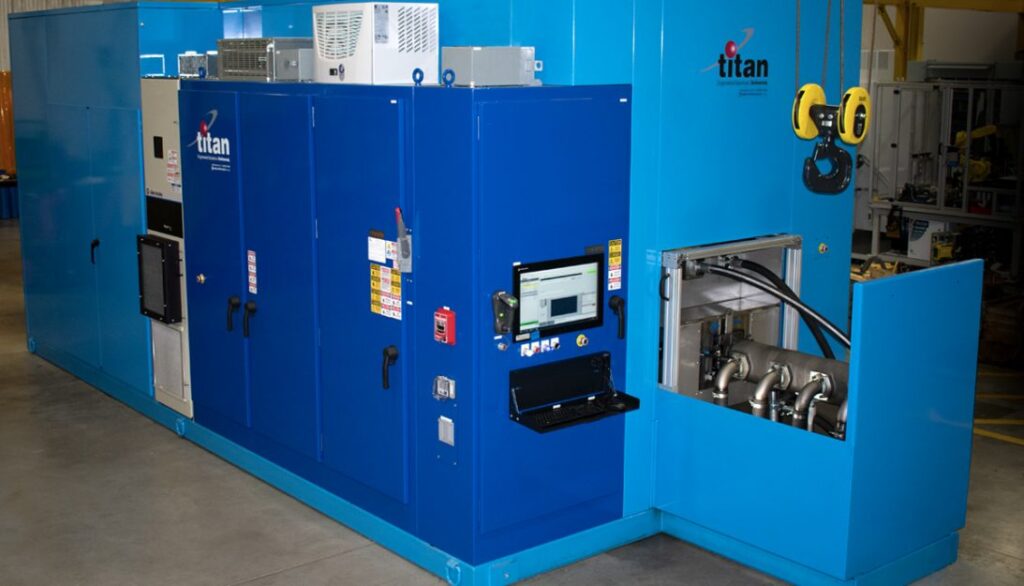

Gear Pump Test
Titan Gear Pump Test system for fluid power rotary motion applications. System hardware and software are designed to address the unique requirements of Gear pumps.

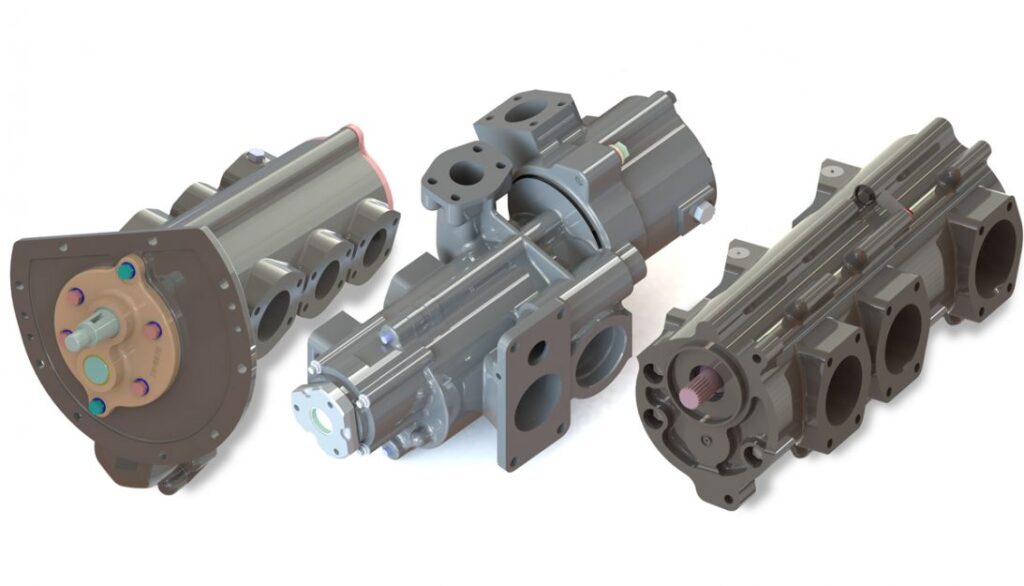

Multi-Section Gear Pump Test
Titan Multi-Section Gear Pump Test system for fluid power rotary motion applications. System hardware and software are designed to address the unique requirements of Multi-Section Gear pumps.
