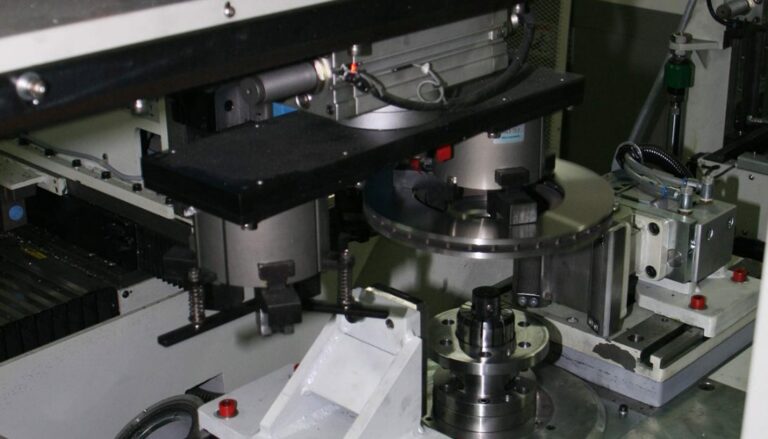

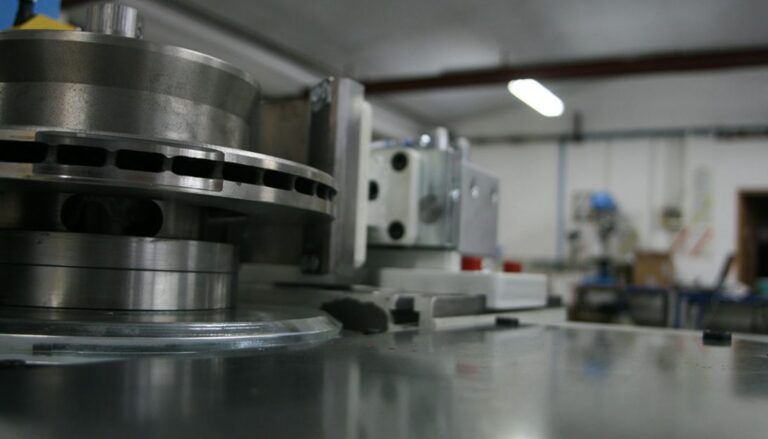

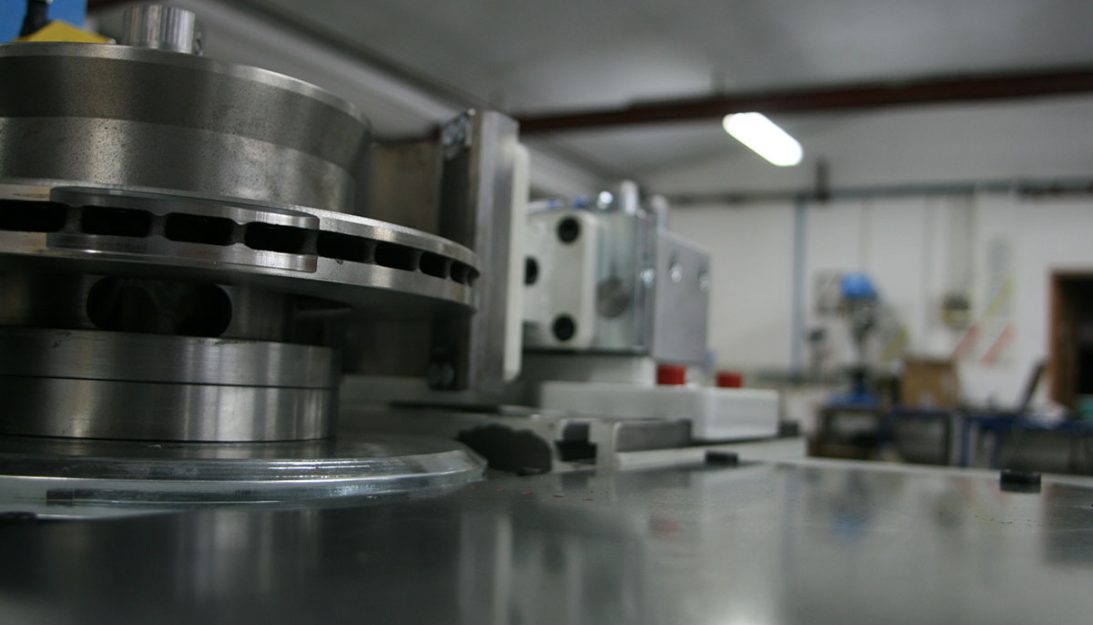

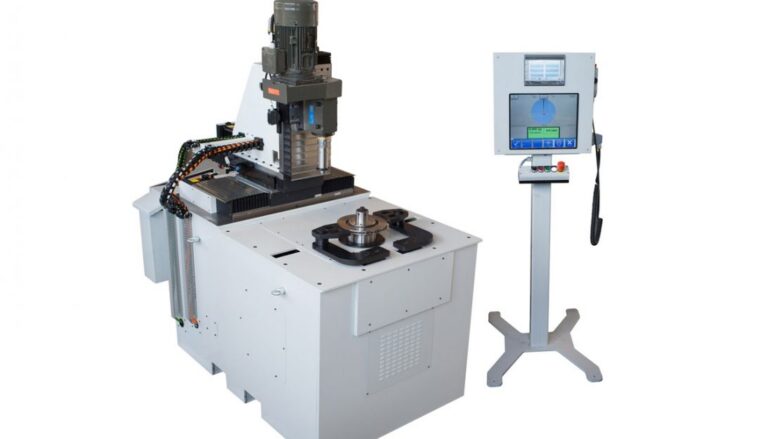

Automated balancers for brake discs and drums
Automated brake disc and drum balancing machines with NC mass correction, servo control, and 98% ISO 2953 reduction ratio.
Machinery Directive 2006/42/EC compliant
Custom balancers and adapters are available
Shortest delivery time
Multiple station balancers are available
Newest measuring and control unit ROTORTEST
No component marking for speed measuring
NC mass correction: milling, drilling, grinding, punching, welding, adding balancing weights etc.
Machine-loading is available
Safety standards ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant
Machinery Directive 2006/42/EC compliant
Custom balancers and adapters are available
Shortest delivery time
Multiple station balancers are available
Newest measuring and control unit ROTORTEST
No component marking for speed measuring
NC mass correction: milling, drilling, grinding, punching, welding, adding balancing weights etc.
Machine-loading is available
Safety standards ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant
Selected Capabilities
Machinery Directive 2006/42/EC compliant
Custom balancers and adapters are available
Shortest delivery time
Key Features
Machinery Directive 2006/42/EC compliant
Custom balancers and adapters are available
Shortest delivery time
Multiple station balancers are available

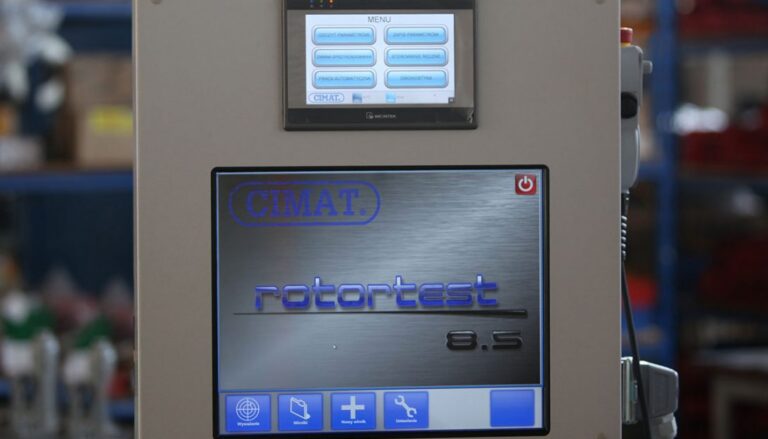

Newest measuring and control unit ROTORTEST
No component marking for speed measuring
NC mass correction: milling, drilling, grinding, punching, welding, adding balancing weights etc.
Machine-loading is available
Safety standards ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant
Technical Specifications
Technical Specifications
| MODEL | CMT-15V | CMT-30V | CMT-50V |
|---|---|---|---|
| Number of drilling or milling tools | 1 | 1 | 1 |
| Number of measuring planes | 1 or 2 | 1 or 2 | 1 or 2 |
| Tool orientation | Axial | Axial | Axial |
| Positional control | Servo | Servo | Servo |
| Maximum component weight | 15 kg | 30 kg | 50 kg |
| Maximum rotor height | 250 mm | 250 mm | 250 mm |
| Maximum correction radius | 150 mm | 150 mm | 150 mm |
| ISO 2953 Reduction Ratio | 98% | 98% | 98% |
| Voltage & phase | 380-480v 3 phase | 380-480v 3 phase | 380-480v 3 phase |
Gallery
Frequently Asked Questions
The Automated Balancers for Brake Discs and Drums are special automatic balancing machines designed for brake discs and drums. They feature NC mass correction, servo control, and a 98% ISO 2953 reduction ratio.
Ready to upgrade your infrastructure?
Contact our engineering team for a custom quote or technical consultation regarding Automated balancers for brake discs and drums.
