Automatic balancers for disc-shaped rotors

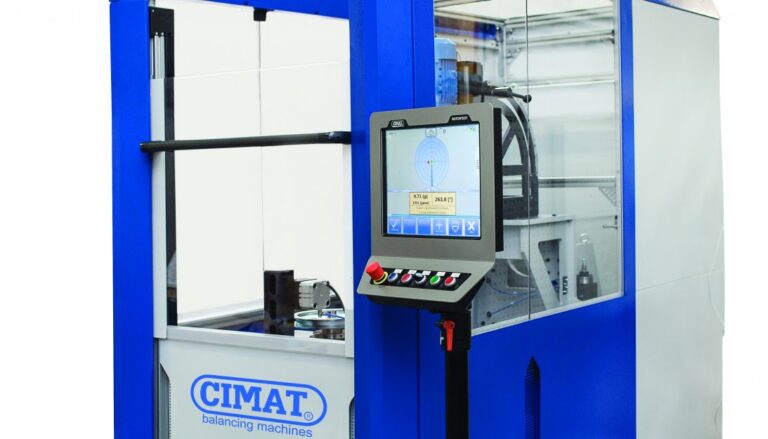

Vertical balancing machines for disc-shaped rotors with automatic drilling correction and robot integration capability.
Overview

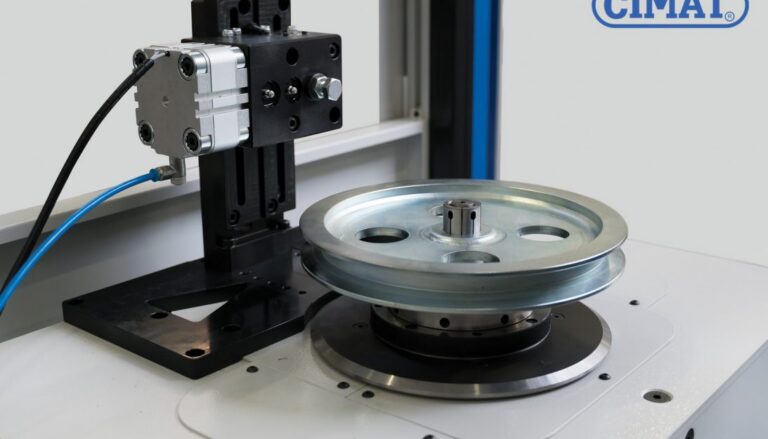

Vertical balancing machines are a proven technology for balancing disc-shaped rotors such as pulleys, flywheels, circular saw blades, and many others.

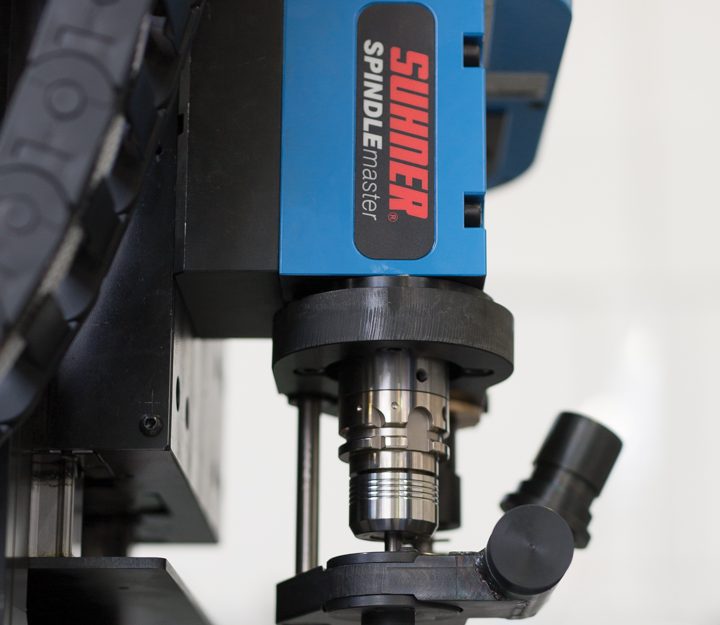

To achieve consistent balancing quality and improve process efficiency — even in small-batch production — the machine can be equipped with a 1-axis automatic drilling system. For added versatility, the drilling spindle can be set in a vertical or horizontal orientation, allowing automatic balancing of a wide range of rotor types. The result is an all-around solution that combines a high performance ratio with an economic price point. The machine is also adapted for robotic integration to support automatic loading as production volumes increase.
Ideal for the machine tool industry, automotive industry, railways, aircraft, pump impeller production, and agriculture.
Key Features
Technical Specifications
Technical Specifications
| Maximum Rotor Weight | 15, 30, 50 kg |
| Rotor Diameter Range | 80 mm – 400 mm |
| Maximum Rotor And Tooling Height | 400 mm |
| Balancing Speed | 600 – 1200 rpm |
| Measurement Uncertainty | 4 gmm |
| Unbalance Reduction Ratio (URR) | Min. 95% |
| Drilling Depth | Servo controlled |

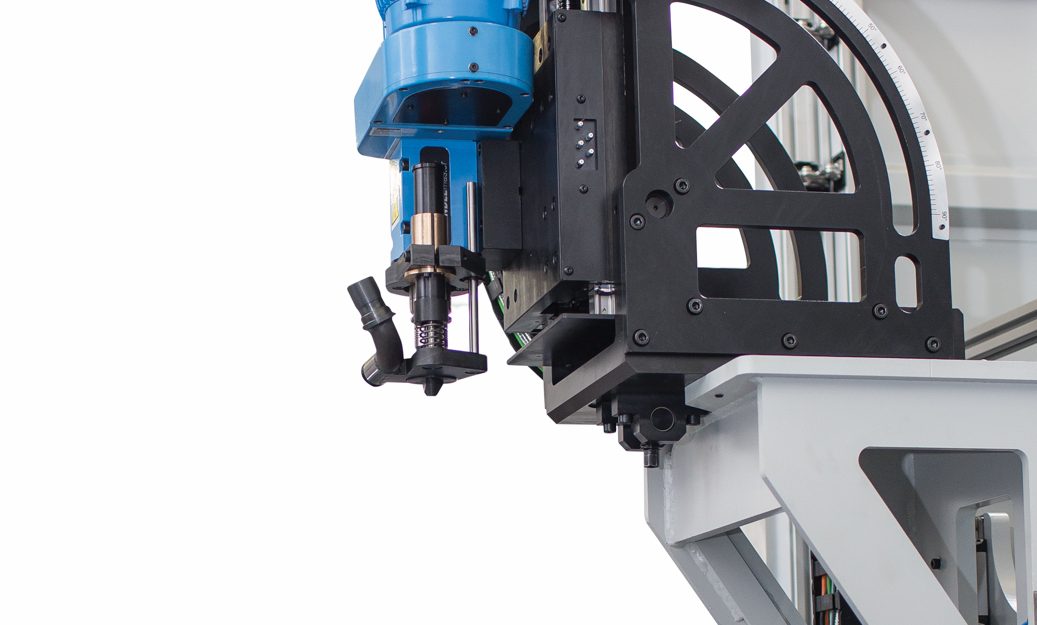

| Drilling Column | Tilted |

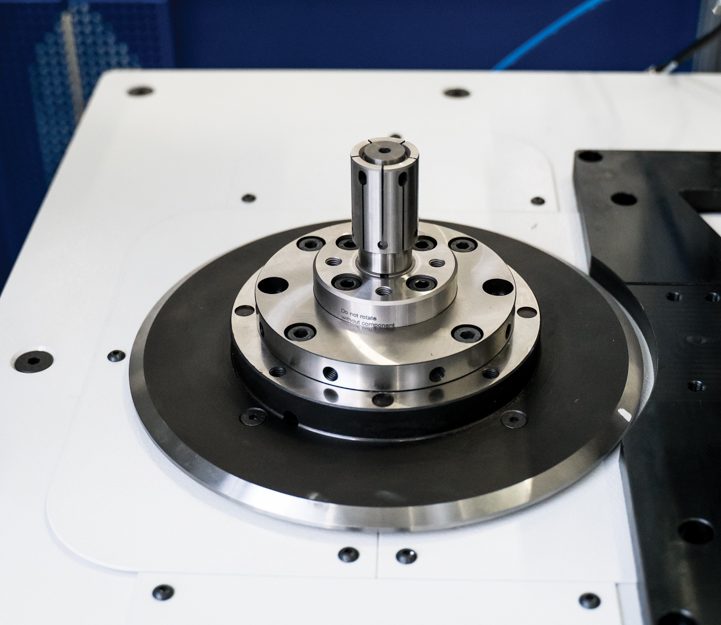

| Rotor Clamping | Automatic |
| Rotor Indexing | Automatic |
| Mass Correction | Automatic drilling |
| Automatic Drilling Correction Range | 90 degrees |
Applications
Gallery
Frequently Asked Questions
The Automatic Balancers for Disc-Shaped Rotors are vertical balancing machines designed for disc-shaped rotors such as pulleys, flywheels, and circular saw blades. They feature automatic drilling correction and robot integration capability for automated loading.
