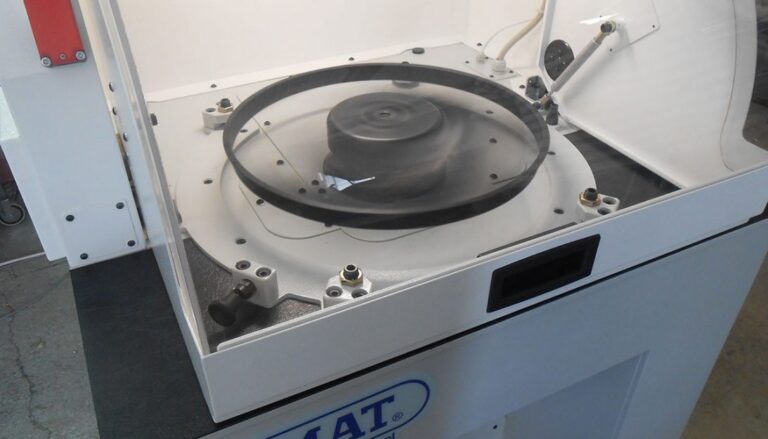

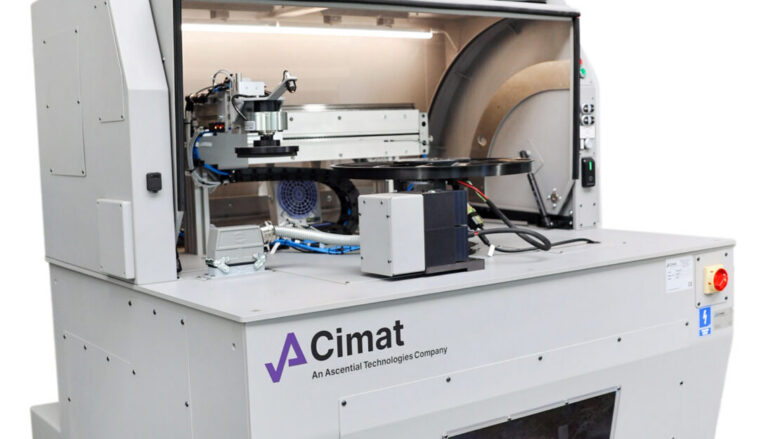

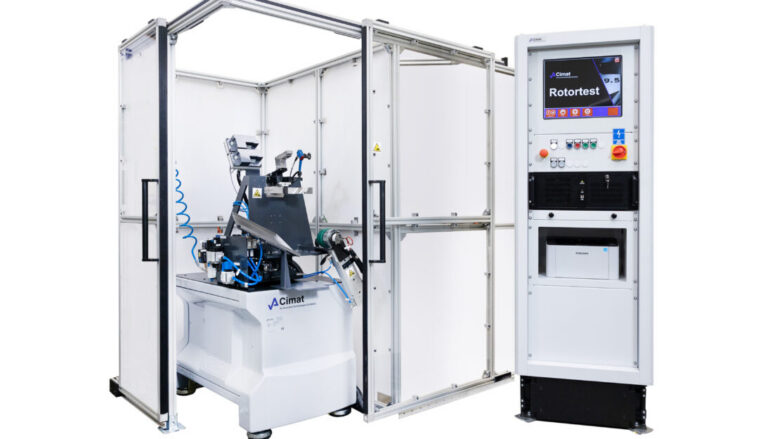

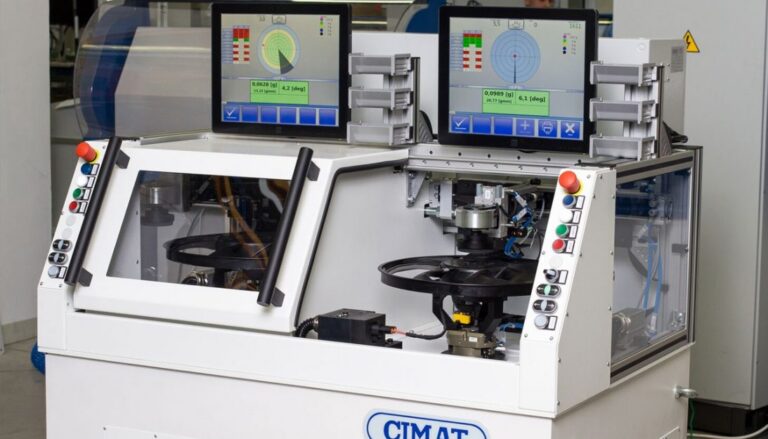

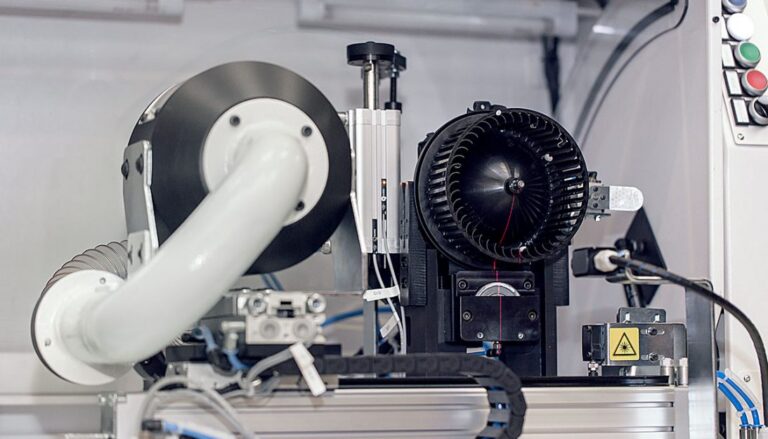

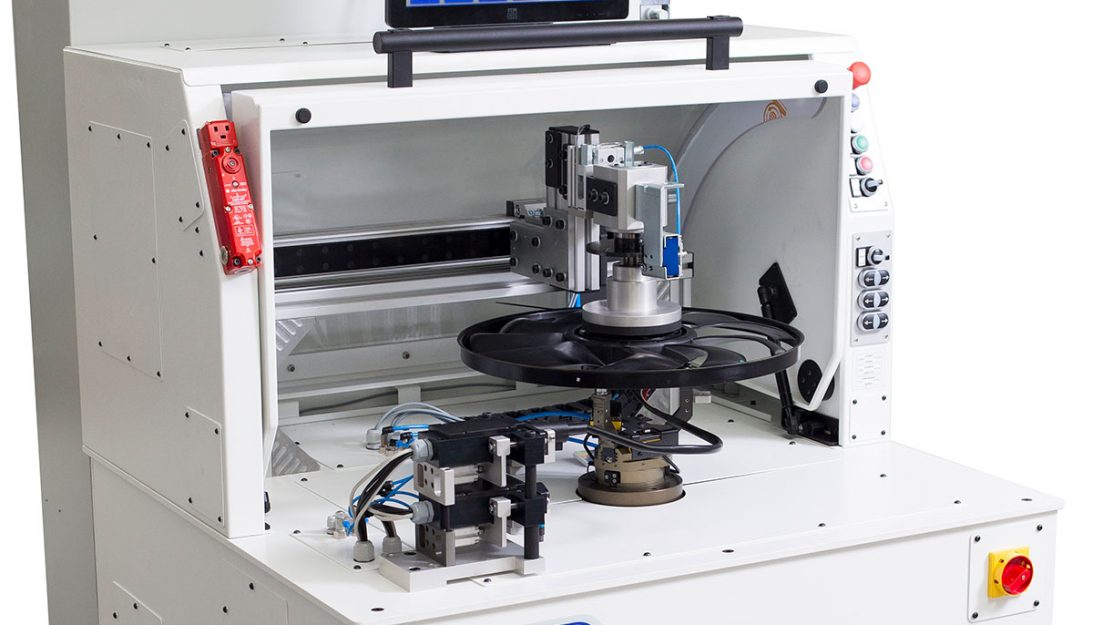

Balancers for ECFA and HVAC blowers
Special automatic balancing machines for ECFA and HVAC blower assemblies with clip-based correction and multiple station configurations.
Machinery Directive 2006/42/EC compliant
Custom balancers are available
Shortest delivery time
Multiple station balancers are available
Newest measuring and control unit ROTORTEST
Balancing reports are saved as a PDF, CSV or XLS, printed on a built-in printer or sent to an ERP system
Safety norms ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant
CIMAT’s software converts amount of unbalance into predefined special balancing clips, which have to be placed on a blade according to the on-screen information
Power supply connectors are connected to the motor of the fan automatically
Machinery Directive 2006/42/EC compliant
Custom balancers are available
Shortest delivery time
Multiple station balancers are available
Newest measuring and control unit ROTORTEST
Balancing reports are saved as a PDF, CSV or XLS, printed on a built-in printer or sent to an ERP system
Safety norms ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant
CIMAT’s software converts amount of unbalance into predefined special balancing clips, which have to be placed on a blade according to the on-screen information
Power supply connectors are connected to the motor of the fan automatically
Selected Capabilities
Machinery Directive 2006/42/EC compliant
Custom balancers are available
Shortest delivery time
Key Features
Machinery Directive 2006/42/EC compliant
Custom balancers are available
Shortest delivery time
Multiple station balancers are available
Newest measuring and control unit ROTORTEST
Balancing reports are saved as a PDF, CSV or XLS, printed on a built-in printer or sent to an ERP system
Safety norms ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant
CIMAT’s software converts amount of unbalance into predefined special balancing clips, which have to be placed on a blade according to the on-screen information
Power supply connectors are connected to the motor of the fan automatically
Technical Specifications
Technical Specifications
| MODEL | CMT-2 V2F – HVAC BLOWER WITHOUT A MOTOR | CMT-1 V2F ECFA – BLOWER WITHOUT A MOTOR | CMT-5V1ECFAC – COMPLETE FAN ASSEMBLY WITHOUT FRAME | CMT-5V1ECFA2 – TWO STATION MACHINE FOR FAN ASSEMBLY WITHOUT FRAME | CMT-5V1EF2 XL155 – MACHINE FOR FAN ASSEMBLIES WITH FRAMES. |
|---|---|---|---|---|---|
| Positional control | Manual | Manual | Manual | Manual | Manual |
| Maximum component weight | 0,05 – 2 kg | 1 kg | 5 kg | 5 kg | 5 kg |
| Maximum rotor height | 350 mm | 100 mm | 150 mm | 150 mm | 150 mm |
| Maximum correction radius | 400 mm | 150 mm | 400 mm | 400 mm | 400 mm |
| ISO 2953 Reduction Ratio | 98% | 98% | 98% | 98% | 98% |
| Balancing speed | Up to 3500 rpm, infinitely variable | Up to 2500 rpm, infinitely variable | Depends on motor | Depends on motor | Depends on motor |
| Voltage & phase | 380-480v 3 phase | 380-480v 3 phase | 380-480v 3 phase | 380-480v 3 phase | 380-480v 3 phase |
Gallery
Frequently Asked Questions
The Balancers for ECFA and HVAC Blowers are special automatic balancing machines designed for assemblies of engine cooling fan assemblies (ECFA) and HVAC blowers and their components. They feature clip-based correction and multiple station configurations.
