Balancers for electric armatures
Versatile horizontal balancing machines for electric armatures from 5 kg to 20,000 kg capacity with custom design options.
universally applicable,
custom design for every customer,
permanent calibration and rotor specific calibration as standard,
intuitive and easy to operate software,
latest measuring and control unit ROTORTEST based on microprocessor technology,
different correction methods are supported: milling, drilling, grinding, punching, welding, adding balancing weights,
safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant and others.
universally applicable,
custom design for every customer,
permanent calibration and rotor specific calibration as standard,
intuitive and easy to operate software,
latest measuring and control unit ROTORTEST based on microprocessor technology,
different correction methods are supported: milling, drilling, grinding, punching, welding, adding balancing weights,
safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant and others.
Selected Capabilities
universally applicable,
custom design for every customer,
permanent calibration and rotor specific calibration as standard,
Overview
At CIMAT, we offer conventional horizontal balancing machines on a bed for electric armatures of various sizes. The greatest advantage of our balancing machines is their versatile application.
Key Features
universally applicable,
custom design for every customer,
permanent calibration and rotor specific calibration as standard,
intuitive and easy to operate software,
latest measuring and control unit ROTORTEST based on microprocessor technology,
different correction methods are supported: milling, drilling, grinding, punching, welding, adding balancing weights,
safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant and others.
Technical Specifications
Technical Specifications
| Specification | CMT-5 | CMT-10 | CMT-50 | CMT-100 | CMT-300 | CMT-700 | CMT-1000 | CMT-3000 | CMT-5000 | CMT-8000 | CMT-10000 | CMT-20000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum weight for symmetrical rotor | 5kg | 10kg | 50kg | 130kg | 300kg | 700kg | 1000kg | 3000kg | 5000kg | 8000kg | 10000kg | 20000kg |
| Maximum rotor diameter | 190 / 370 mm | 200 / 390 mm | 1200 / 1600 mm | 1200 / 1600 mm | 1250 / 1700 mm | 1250 / 1700 mm | 1080 / 1700 mm | 1150 / 1800 mm | 1380 / 1980 mm | 2200mm | 2200mm | 2200mm |
| ISO 2953 Reduction Ratio | 98% | 98% | 98% | 98% | 98% | 98% | 98% | 98% | 98% | 98% | 98% | 98% |
| Accuracy – MU 60 runs @ 95% 2 standard deviations | 0,05 | 0,1 | 0,5 | 1 | 2 | 2 | 3 | 7 | 15 | 15 | 25 | 35 |
| Journal range | 4-40mm | 5-25mm | 10-140mm | 10-140mm | 15-220mm | 15-220mm | 15-220mm | 20-250mm | 20-280mm | 25-380mm | 25-380mm | 40-420mm |
| Working height approx. | 1130mm | 1110mm | 1110mm | 1110mm | 1120mm | 1120mm | 1120mm | 1170mm | 1325mm | 1445mm | 1445mm | 1570mm |
| Voltage & phase. All 50-60Hz | 110 or 240V 3 ph | 110 or 240V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph |
End Drive (H2C)
| Specification | CMT-5 | CMT-10 | CMT-50 | CMT-100 | CMT-300 | CMT-700 | CMT-1000 | CMT-3000 | CMT-5000 | CMT-8000 | CMT-10000 | CMT-20000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum distance between bearers with standard bed | NA* | o.r.** | 2900mm | 2900mm | 2200mm | 2200mm | 2160mm | 2065mm | 1900mm | 1850mm | 1850mm | 3670mm (BED 6400MM) |
| Incremental bed length increases | NA* | o.r.** | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 3200 + 3200 mm |
| Minimum distance between bearer centre line | NA* | o.r.** | 40mm | 40mm | 65mm | 65mm | 70mm | 60mm | 85mm | 200mm | 200mm | 470mm |
| Infinitely variable balancing speed | NA* | o.r.** | 600-1400RPM | 600-1400RPM | 600-1400RPM | 600-1400RPM | 600-1400RPM | 600-1400RPM | 600-1400RPM | 600-1400RPM | 600-1400RPM | 600-1400RPM |
| AC motor size | NA* | o.r.** | 1,1 kW | 1,1 kW | 1,5 kW | 2,2 kW | 2,2 kW | 4 kW | 5,5 kW | 7,5 kW | 10 kW | 37 kW |
Belt (H2B)
| Specification | CMT-5 | CMT-10 | CMT-50 | CMT-100 | CMT-300 | CMT-700 | CMT-1000 | CMT-3000 | CMT-5000 | CMT-8000 | CMT-10000 | CMT-20000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum distance between bearers with standard bed | 360mm | 350mm (bed 435 mm) | 2830mm | 2830mm | 2830mm | 2830mm | 2830mm | 2790mm | 2750mm | o.r. | o.r. | o.r. |
| Incremental bed length increases | NA* | NA* | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm | 3200 + 3200 mm |
| Minimum distance between bearers with/without belt drive | 20mm | 55 mm | 260 / 40 mm | 260 / 40 mm | 260 / 65 mm | 260 / 65 mm | 290 / 70 mm | 280 / 60 mm | 360 / 85 mm | 200mm | 200mm | 470mm |
| Maximum diameter with over belt drive (under slung) | 190mm | 200mm | 1200mm | 1200mm | 1250mm | 1250mm | 1080mm | 1150mm | 1380mm | o.r. | o.r. | o.r. |
| Motor speed at drive pulley infinitely variable | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM | 1500 / 3000 RPM |
| AC motor size | 0,2 kW | 0,4 kW | 0,75 kW | 1,1 kW | 1,5 kW | 2,2 kW | 2,2 kW | 4 kW | 5,5 kW | 7,5 kW | 10 kW | 22 kW |
Gallery
Frequently Asked Questions
The Balancers for Electric Armatures are versatile horizontal balancing machines on a bed designed for electric armatures of various sizes, from 5 kg to 20,000 kg capacity. Their greatest advantage is their versatile application with custom design options for every customer.
Ready to upgrade your infrastructure?
Contact our engineering team for a custom quote or technical consultation regarding Balancers for electric armatures.
Related Products
Balancers for conveyor and paper rolls
Specialty balancing machines for pulp and paper industry conveyors and rollers, from… Industrial Balancing Machine
Balancers for rotors of pumps
Versatile horizontal balancing machines for pump rotors from 5 kg to 20,000… Industrial Balancing Machine

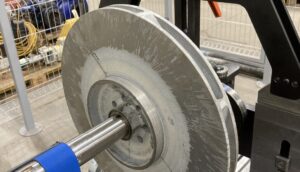

Pump impeller balancers
