Balancers for water meters
Compact balancing machines for water meter components with silica sand vibration dampening and no-foundation installation.
Overview
In addition to conventional horizontal balancing machines on a bed, CIMAT offers compact balancing machines designed to meet the ergonomic requirements of each customer. The greatest advantage of compact balancing machines is their easy placement — embedded vibration insulators eliminate the need for foundations. As such, our compact machines occupy a small area compared to conventional bed-mounted balancing machines. This is made possible by a guard coupled with the machine body, requiring no additional floor space. Despite their small dimensions, these compact balancing machines have a robust body with silica sand filling to dampen vibration. As a result, our machines are capable of very accurate measurements and are less sensitive to outside disturbances.
Key Features
Technical Specifications
Technical Specifications
| MODEL | CMT-15H2BS | CMT-30H2BS |
|---|---|---|
| Maximum weight for symmetrical rotor | 15 kg | 30 kg |
| Maximum rotor diameter | 200 / 390 mm | 700 mm |
| ISO 2953 Reduction Ratio | 98% | 98% |
| Accuracy – MU 60 runs @ 95% 2 standard deviations | 0,1 | 0,15 |
| Journal range | 5-25 mm | 10-140 mm |
| Working height approx. | 1100 mm | 1200 mm |
| Voltage & phase. All 50-60Hz | 110 or 240v 1ph | 220 or 400V 3 ph |
| Maximum distance between bearers with standard bed | 360 mm | 1200mm/1500mm |
| Minimum distance between bearers with/without belt drive | 55 mm | 50mm/30mm |
| Maximum diameter with over belt drive (under slung) | 200 mm | 385 mm |
| Motor speed at drive pulley infinitely variable | 1500/3000 RPM | 1500/3000 RPM |
| AC motor size | 0,4kW | 0,75 kW |

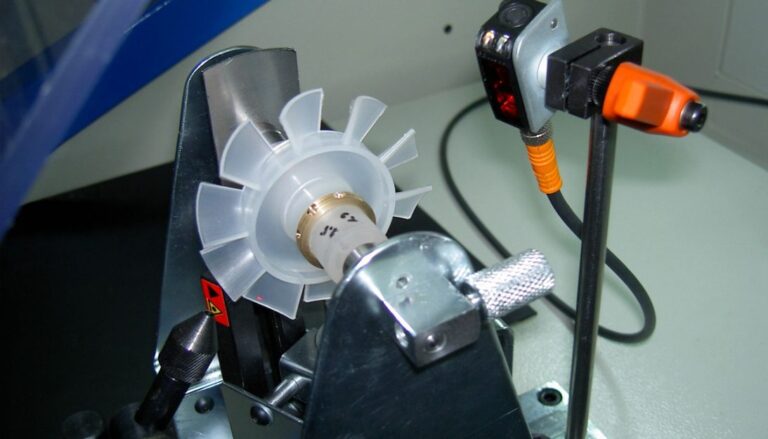

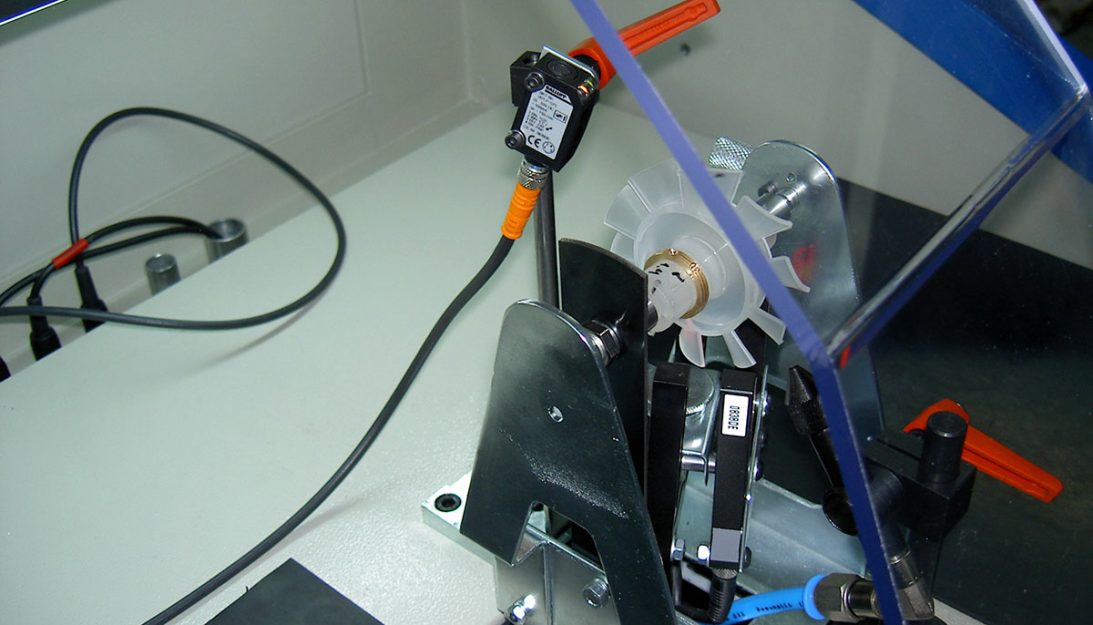

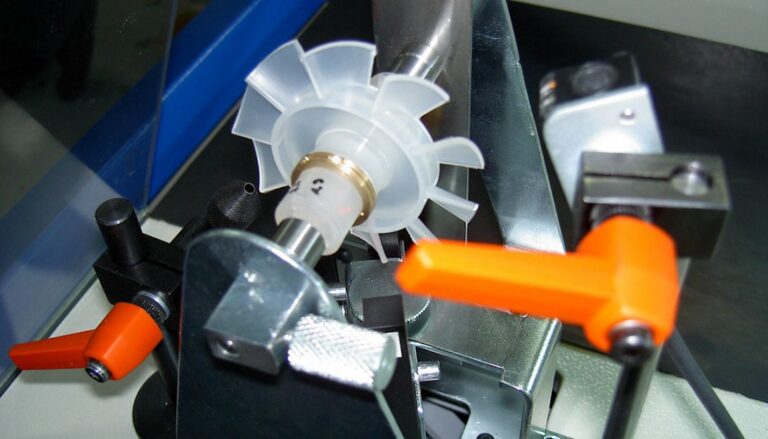

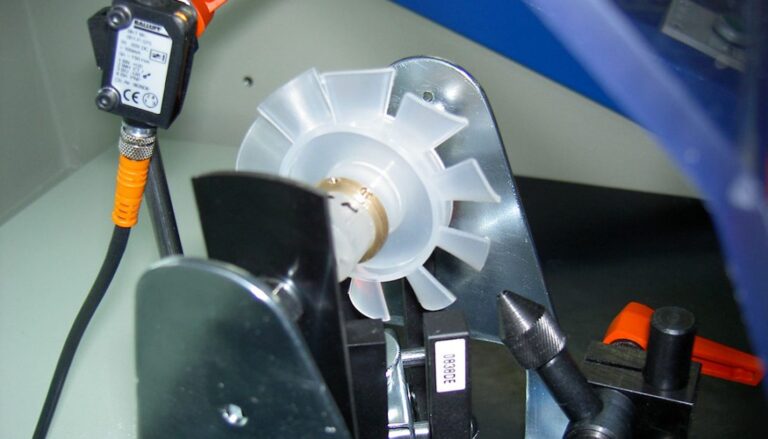

Gallery
Frequently Asked Questions
The Balancers for Water Meters are compact balancing machines designed for water meter components. They feature silica sand vibration dampening and embedded vibration insulators that do not require a foundation, allowing for easy placement in any work environment.
Ready to upgrade your infrastructure?
Contact our engineering team for a custom quote or technical consultation regarding Balancers for water meters.
