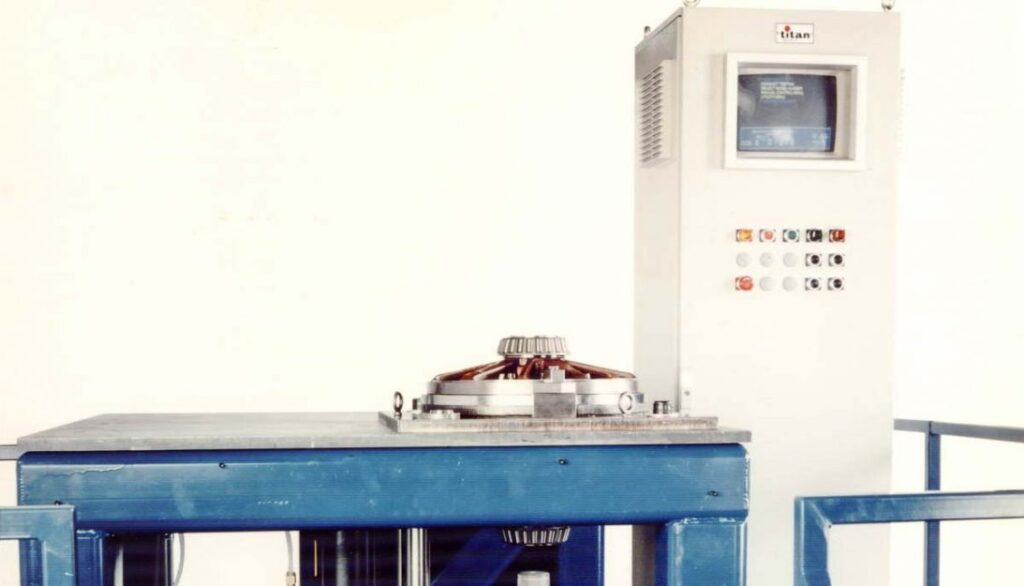

Tractor Axles
Titan Tractor Axles system for powertrain axles applications. Tractor axles require functional testing to assure they were assembled properly before they are married to the main tractor chassis. Axles can be spin tested to break in the gear sets and bearings. Designed and built to improve performance, profitability, and quality, our custom-built powertrain verification & validation and automated assembly systems are second to none. On the leading edge of automation and validation testing, our systems are equipped with an array of sensors (powered by sophisticated data acquisition software) that can check proper assembly, mechanical efficiency, parasitic drag, etc. Almost completely automated, our test systems accept a wide range of products/models and require minimal operator interaction.

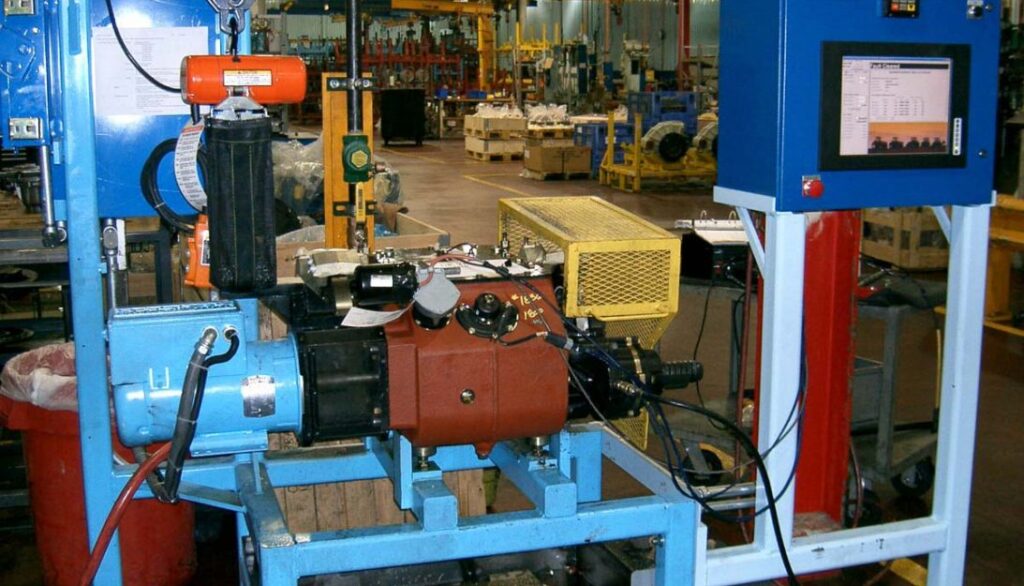

Rear Axle Differential
Titan Rear Axle Differential system for powertrain axles applications. Designed and built to improve performance, profitability, and quality, our custom-built rear axle differential verification & validation and automated assembly systems are second to none. On the leading edge of automation and validation testing, our systems are equipped with an array of sensors (powered by sophisticated data acquisition software) that can check proper assembly, mechanical efficiency, parasitic drag, etc. Almost completely automated, our test systems accept a wide range of products/models and require minimal operator interaction.

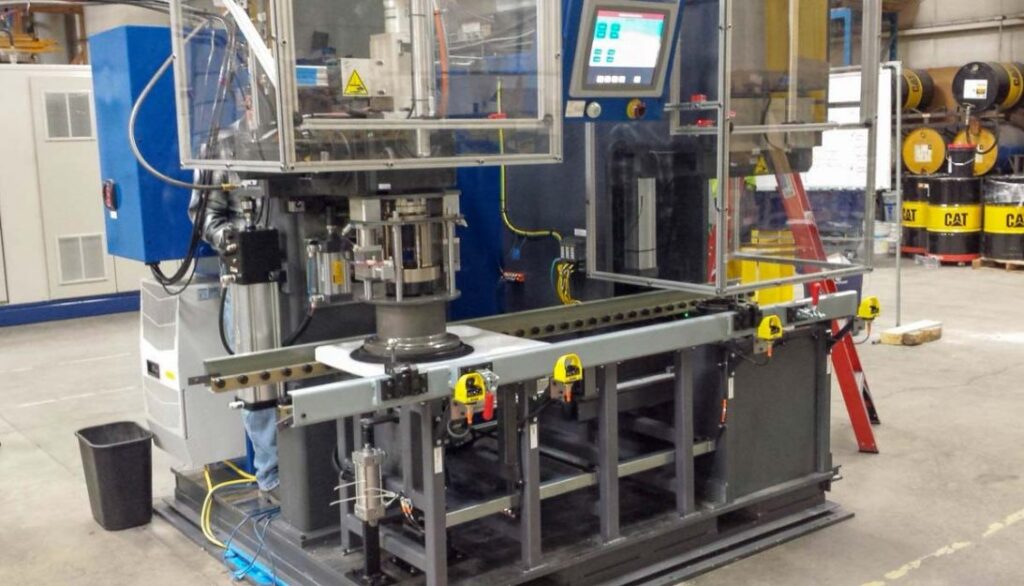

Pinion Gear & Housing
Titan Pinion Gear & Housing system for powertrain axles applications. This is a two-station assembly system for pinion shaft to the housing assembly for a line of wheel loaders for the construction industry. First station is a servo pressing station locating cups in pinion housing and bearing cones on pinion gear shaft. Second station tightens nut on pinion shaft to remove endplay and set preload on tapered roller bearings. Rolling torque is measured automatically to verify bearing preload. Manual material handling with electronically controlled assembly operations. Each step must be completed before operator moves to next stage.

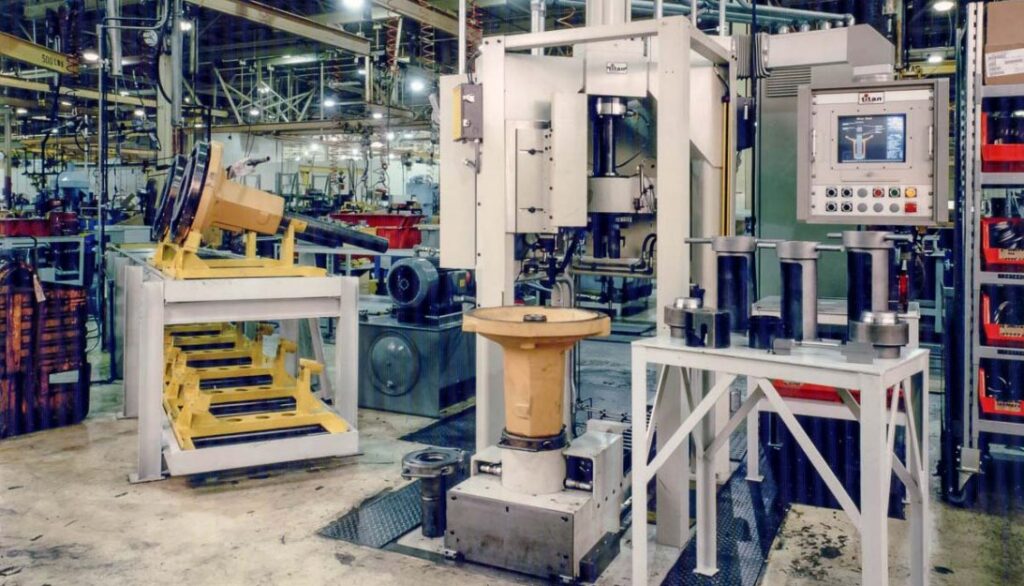

Axle Shafts & Housing
Titan Axle Shafts & Housing system for powertrain axles applications. Titan has created several systems for assembling and testing large tractor rear axle assemblies. The system allows an operator to insert tapered roller bearings and shaft into a cast housing assembly. A pressing tool cart features the different gauge heads and assembly tools. The Test Stand directs the operator where to put the axle shaft, where the bearings go on the shaft. The shaft goes into the housing using an overhead crane. The system performs a comprehensive test of the axle, checking for rolling torque and preload on the bearings. The system also helps the operator select the right shims when compensation is required. The system walks the operator through the assembly process to ensure that the axle is correctly assembled before it is connected to the tractor.
