Industrial balancing machine Vertical manual - tools and tool holders

Vertical balancing machines for tools and tool holders

Q: What are the key features of the Vertical Balancing Machines for Tools and Tool Holders?

Key features include compliance with Machinery Directive 2006/42/EC, special balancing adapters to fit ISO, HSK, CAT, or other tool holders, the newest ROTORTEST measuring and control unit, support for mass correction methods including milling, drilling, grinding, punching, welding, and adding balancing weights, and safety norms compliant with ISO 21940-23:2012. Balancing reports can be saved as PDF, CSV, or XLS and sent to an ERP system via Ethernet.

Q: What models of Vertical Balancing Machines for Tools and Tool Holders are available?

Four models are available: CMT-15 V2T, CMT-30 V2T, CMT-15 V2MD, and CMT-30 V2MD, with standard parameters that can be modified upon request.

Vertical balancing machines for high-speed tools and tool holders with unrivaled accuracy, available with automatic correction.

Machinery Directive 2006/42/EC compliant. Custom balancers are available. Special balancing adapters to fit ISO, HSK, CAT or other tool holders. Newest measuring and control unit ROTORTEST. Mass correction types: milling, drilling, grinding, punching, welding, adding balancing weights etc. Safety norms ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant. Balancing reports are saved as a PDF, CSV or XLS, printed on a built-in printer or sent to an ERP system via Ethernet. Machinery Directive 2006/42/EC compliant. Custom balancers are available. Special balancing adapters to fit ISO, HSK, CAT or other tool holders. Newest measuring and control unit ROTORTEST. Mass correction types: milling, drilling, grinding, punching, welding, adding balancing weights etc. Safety norms ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant. Balancing reports are saved as a PDF, CSV or XLS, printed on a built-in printer or sent to an ERP system via Ethernet.

Selected Capabilities

Machinery Directive 2006/42/EC compliant.

Custom balancers are available.

Special balancing adapters to fit ISO, HSK, CAT or other tool holders.

Request a quote

Vertical Balancing Machines for Tools and Tool Holders

Overview Features Specs Gallery Resources FAQ Catalog

Overview

At CIMAT, we offer a wide range of vertical balancing machines for tools and tool holders. As a specialist manufacturer, we also produce custom vertical balancing machines for tools and tool holders operating at high speeds. Our balancers are extremely accurate and support high-quality metal processing.

Unbalanced tools or tool holders lead to dangerous vibrations, rattling, and poor surface quality. Therefore, we incorporate the latest proven technology and deliver unrivaled accuracy, repeatability, and faster results than comparable machines on the market.

Key Features

Machinery Directive 2006/42/EC compliant.

Custom balancers are available.

Special balancing adapters to fit ISO, HSK, CAT or other tool holders.

Newest measuring and control unit ROTORTEST.

Mass correction types: milling, drilling, grinding, punching, welding, adding balancing weights etc.

Safety norms ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant.

Balancing reports are saved as a PDF, CSV or XLS, printed on a built-in printer or sent to an ERP system via Ethernet.

Technical Specifications

MODEL	CMT-15 V2T	CMT-30 V2T	CMT-15 V2MD	CMT-30 V2MD
Maximum work piece weight	15 kg	30 kg	15 kg	30 kg
Maximum diameter of a work piece	450 mm	450 mm	450 mm	450 mm
Maximum length of a tool	600 mm	600 mm	600 mm	600 mm
Required air pressure	0,6 MPa	0,6 MPa	0,6 MPa	0,6 MPa
On-station correction	Not applicable	Not applicable	Automatic drilling and milling	Automatic drilling and milling

Gallery

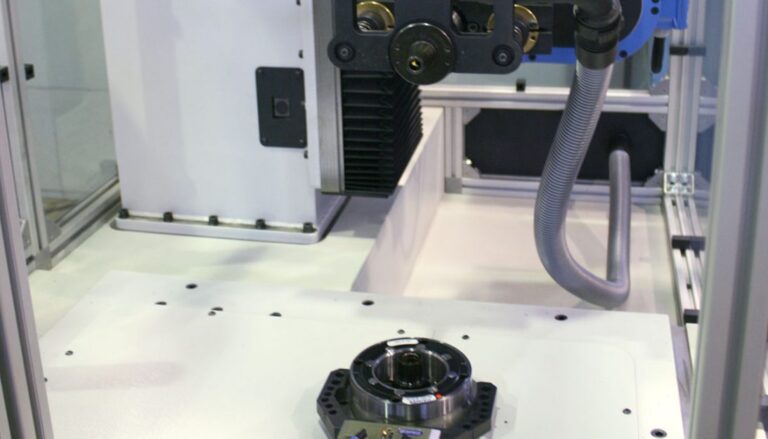

Vertical Balancing Machines for Tools and Tool Holders - Image 2

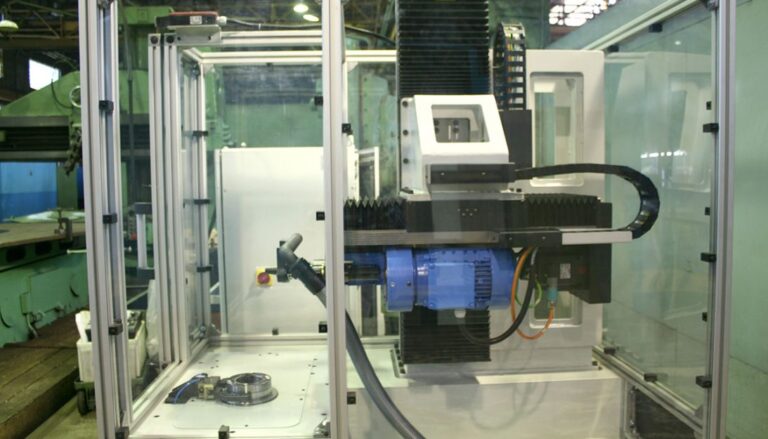

Vertical Balancing Machines for Tools and Tool Holders - Image 3

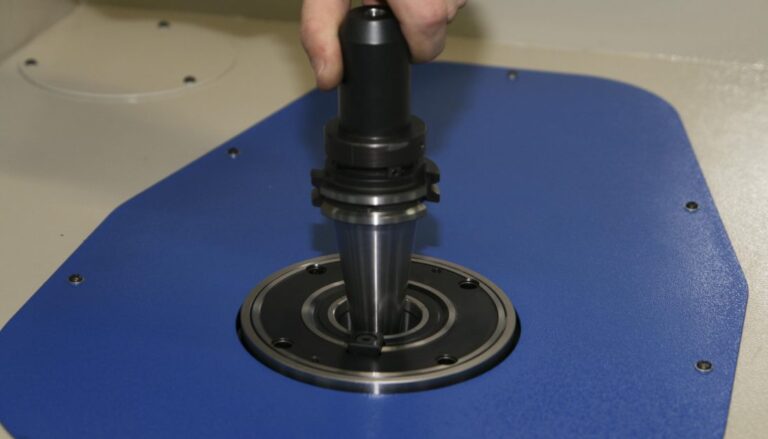

Vertical Balancing Machines for Tools and Tool Holders - Image 4

Vertical Balancing Machines for Tools and Tool Holders - Image 5

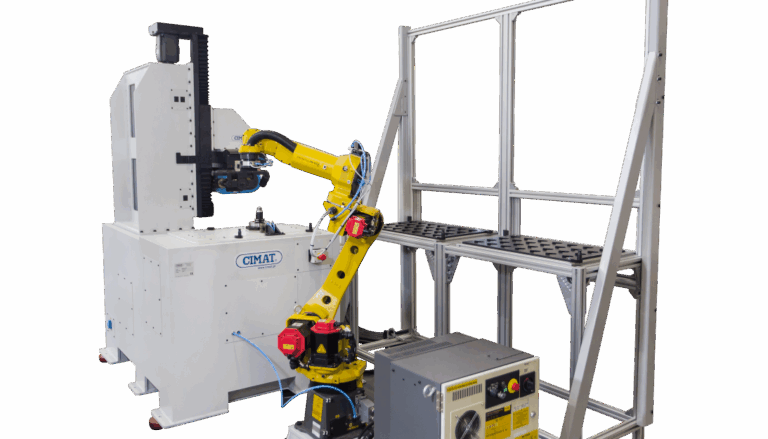

Vertical Balancing Machines for Tools and Tool Holders - Image 6

Frequently Asked Questions

What are the Vertical Balancing Machines for Tools and Tool Holders?

The Vertical Balancing Machines for Tools and Tool Holders are a range of vertical balancing machines offering unrivaled accuracy for tools and tool holders working at high speeds. They are available with automatic correction and custom machines can be manufactured for specific requirements.

What are the key features of the Vertical Balancing Machines for Tools and Tool Holders?

What models of Vertical Balancing Machines for Tools and Tool Holders are available?
